Запчасти Case IH L130 (006) - BUCKETS (82) - FRONT LOADER & BUCKET

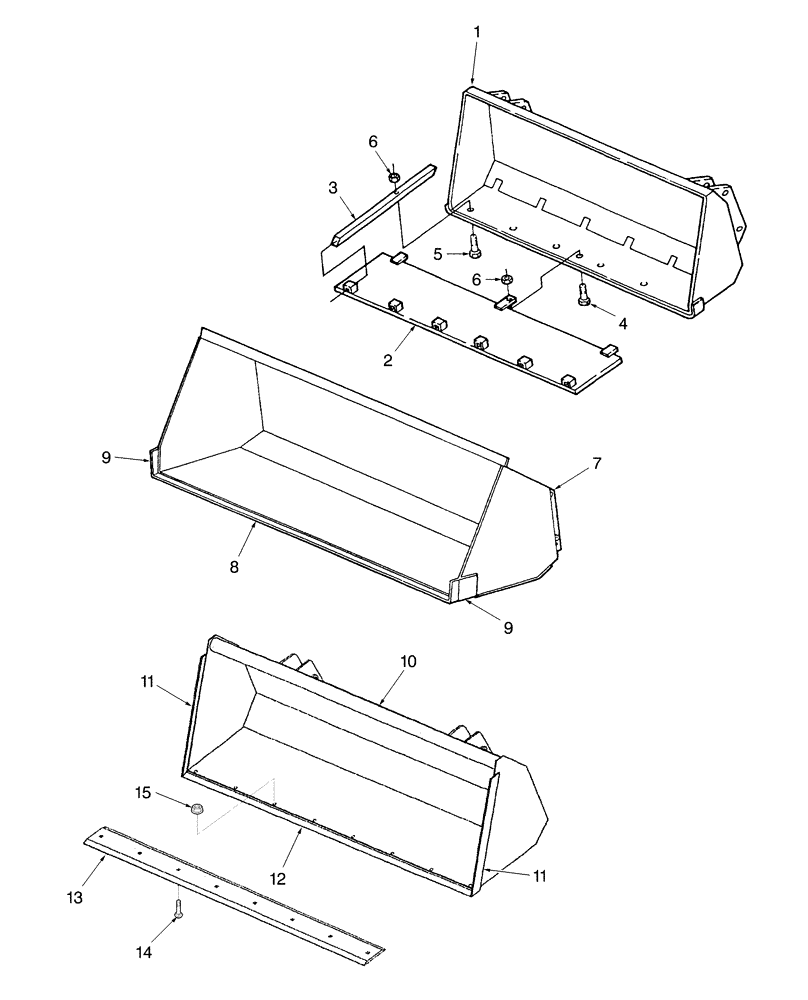

Схема запчастей Case IH L130 - (006) - BUCKETS (82) - FRONT LOADER & BUCKET
2
12
14
9
10
6
11
4
6
1
13
15
3
8
9
7
5
11

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Bucket, 48" Manure Fork & Dirt Plate, Includes: Bucket Plus Ref. 2 thru 6 {715711006, 715711016 & 715711026}

1шт.

Order thru Wholegoods

1шт.

2

SML36208

PLATE

Dirt

1шт.

3

SML7787

REEL TINE

Square, 1" x 21-3/4"

6шт.

4

PL

PROCURE LOCALLY

Screw, Cap, 3/8" - 16 x 3/4"

1шт.

5

PL

PROCURE LOCALLY

Screw, Cap, 3/8" - 16 x 1-1/2"

6шт.

6

PL

PROCURE LOCALLY

Nut, Lock, 3/8" - 16

7шт.

7

W0

ORDER WHOLEGOODS

Bucket, 48" , Material {715712016, 715712026 & 715712036}

1шт.

Order thru Wholegoods

1шт.

7

W0

ORDER WHOLEGOODS

Bucket, 54" , Material {715713016, 715713026 & 715713036}

1шт.

Order thru Wholegoods

1шт.

7

W0

ORDER WHOLEGOODS

Bucket, 60" , Material {715714026, 715714046 & 715714066}

1шт.

Order thru Wholegoods

1шт.

7

W0

ORDER WHOLEGOODS

Bucket, 68" , Material {715715006, 715715016 & 715715026}

1шт.

Order thru Wholegoods

1шт.

8

SML2254110

CUTTING EDGE

48"

1шт.

8

SML225418

CUTTING EDGE

54"

1шт.

8

SML2254111

CUTTING EDGE

60"

1шт.

8

W0

ORDER WHOLEGOODS

Edge, 60" Bolt-on Cutting {716426006, 716426016 & 716426026}

1шт.

Order thru Wholegoods

1шт.

8

SML225416

CUTTING EDGE

68"

1шт.

8

W0

ORDER WHOLEGOODS

Edge, 68" Bolt-on Cutting {716427006, 716427016 & 716427026}

1шт.

Order thru Wholegoods

1шт.

9

SML225419

CUTTING EDGE

Side

2шт.

10

W0

ORDER WHOLEGOODS

Bucket, 60" Heavy Duty (Includes Cutting Edges) {716424026, 716424036 & 716424046}

1шт.

Order thru Wholegoods

1шт.

10

W0

ORDER WHOLEGOODS

Bucket, 68" Heavy Duty (Includes Cutting Edges) {716425026, 716425036 & 716425046}

1шт.

Order thru Wholegoods

1шт.

11

SML44408

CUTTING EDGE

Flat

2шт.

12

SML44465

CUTTING EDGE

Bottom (60" Heavy Duty)

1шт.

12

SML44468

CUTTING EDGE

Bottom (68" Heavy Duty)

1шт.

13

9864075

CUTTING EDGE

60" Bolt on Reversible Blade

1шт.

13

9864076

CUTTING EDGE

68" Bolt on Reversible Blade

1шт.

14

419-2828

PLOW BOLT,#3, 1/2" - 13 x 1 3/4", Cl 5

G5, 1/2"-13 x 1-3/4"

1шт.

15

232-4148

NUT,1/2"-13, GC

1шт.
