Запчасти Case IH L130 (003) - MOUNTING BRACKETS (82) - FRONT LOADER & BUCKET

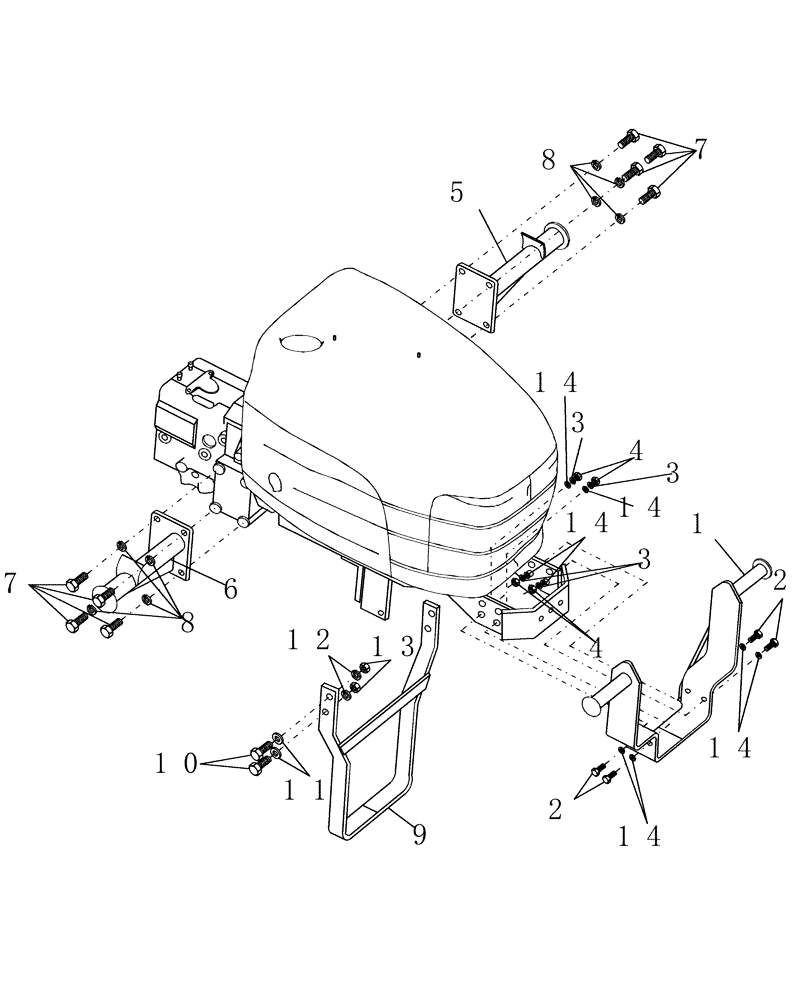

Схема запчастей Case IH L130 - (003) - MOUNTING BRACKETS (82) - FRONT LOADER & BUCKET
14
4
6
14
8
4
9
13
11
7
7
3
5
14
8
12
3
2
14
1
2
14
3
10

Артикул

Название

Примечание

Количество

1

86615106

MOUNTING PLATE

Front

1шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HH, G5, 1/2"-13 x 2"

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

4шт.

5

86615004

BRACKET

Mid-Mount, L.H.

1шт.

6

86615005

BRACKET

Mid-Mount, R.H.

1шт.

7

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

8

12034871

WASHER

(5/8")

8шт.

9

86614996

SPARE PART

Parking

1шт.

10

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Cap, HH, G5, 3/4"-10 x 3"

4шт.

11

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

4шт.

12

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

13

425-1012

NUT,3/4"-10, G5

4шт.

14

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

Lock, 3/4"

8шт.

15

W0

ORDER WHOLEGOODS

Kit, Mount {716374006 & 716374016}

1шт.

Not Illustrated

1шт.

Order thru Wholegoods

1шт.

Выбрано товаров: 17
