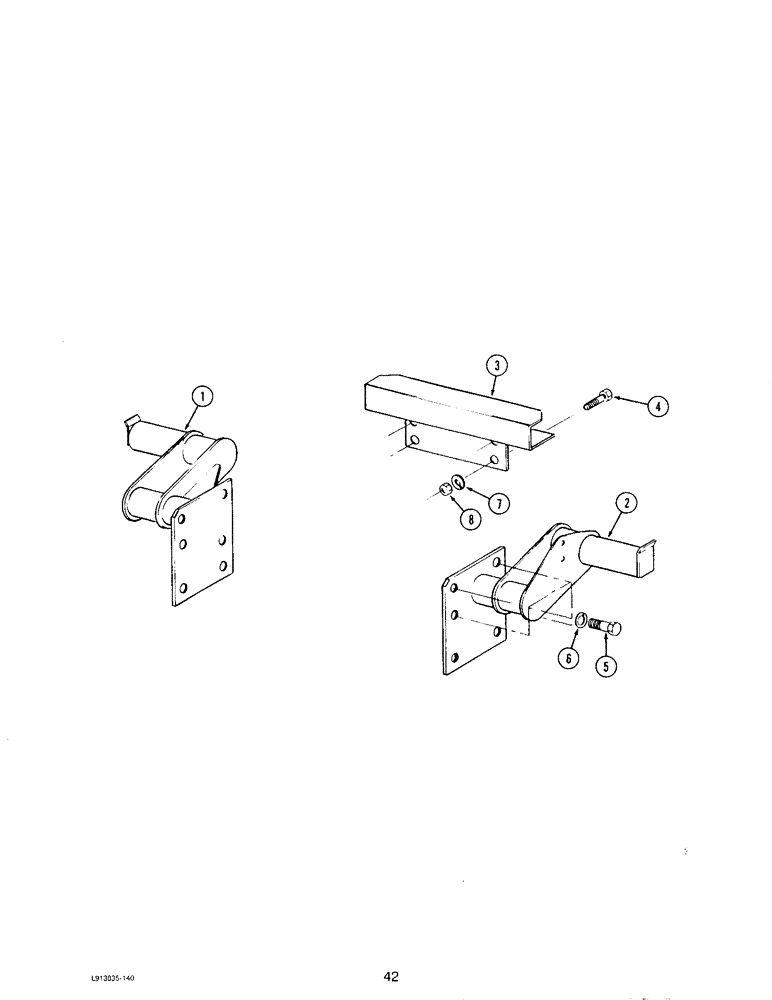

Запчасти Case IH L108 (42) - LOADER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

1540441C1

BRACKET - mounting, left rear (L106)

1шт.

1

1540079C1

MOUNTING PARTS

BRACKET - mounting, left rear (L108)

1шт.

2

1540042C1

MOUNTING PARTS

BRACKET - mounting, right rear (L106)

1шт.

2

1540080C1

MOUNTING PARTS

BRACKET - mounting, right rear (L108)

1шт.

3

1540082C1

MOUNTING PARTS

BRACKET - mounting, front

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (L106)

4шт.

4

61-35024

HEX SOC SCREW,1/2"-13 x 1 1/2"

BOLT - hex, 1/2 NC x 1-1/2 inch (L108)

4шт.

5

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, 14 x 35 mm

8шт.

6

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

7

492-11038

LOCK WASHER,3/8"

(L106) 3/8"

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (L108) 1/2"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

(L106) 3/8"-16, G5

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (L108) 1/2"-13, G5

4шт.
