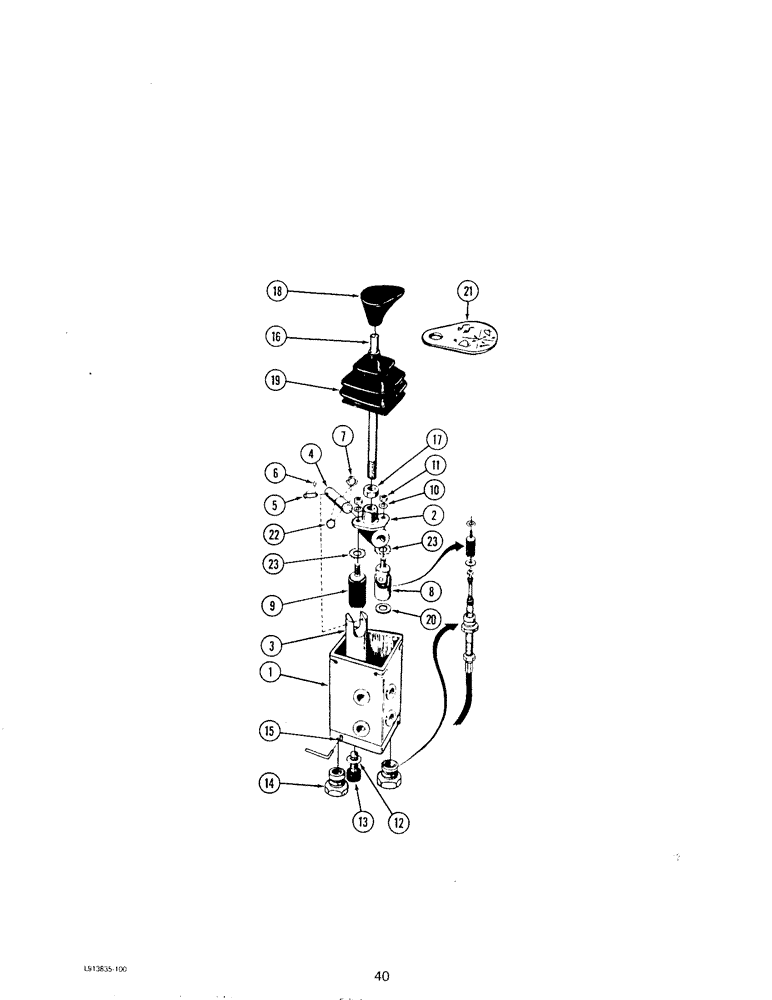

Запчасти Case IH L108 (40) - MONO-LEVER CONTROL ASSEMBLY (08) - HYDRAULICS

1540112C1

LEVER ASSY.

CONTROL ASSEMBLY - mono lever, Includes: Ref. 1 - 23

1шт.

1

1344811C1

HOUSING

- control device

1шт.

2

1344812C1

PLATE

- mounting

1шт.

3

1344807C1

SUPPORT

- valve axle

1шт.

4

1344808C1

AXLE

- valve

1шт.

5

1344805C1

PIN

- headed

1шт.

6

1344813C1

RING

- retaining

2шт.

7

1344814C1

RING

- retaining

2шт.

8

1540117C1

BALL JOINT

JOINT - ball

2шт.

9

1540118C1

SLEEVE

- rubber

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

825-1406

NUT,M6, Cl 8

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

13

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

BOLT - hex socket, 10 mm - 1.50 x 35 mm

1шт.

14

1344809C1

NUT

- adjusting

2шт.

15

878-50610

SET SCREW,Hex Skt, M6 x 10mm, Dog Pt

SCREW - locking

2шт.

16

1344806C1

LEVER

- control valve

1шт.

17

1540119C1

NUT

- control lever rod

1шт.

18

1540121C1

KNOB

- control lever

1шт.

19

1344804C1

BOOT

- control rod

1шт.

20

1540120C1

WASHER

- flat

2шт.

21

1540093C1

DECAL

- lever function

1шт.

22

1540116C1

SHIM

- valve axle

2шт.

23

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.
