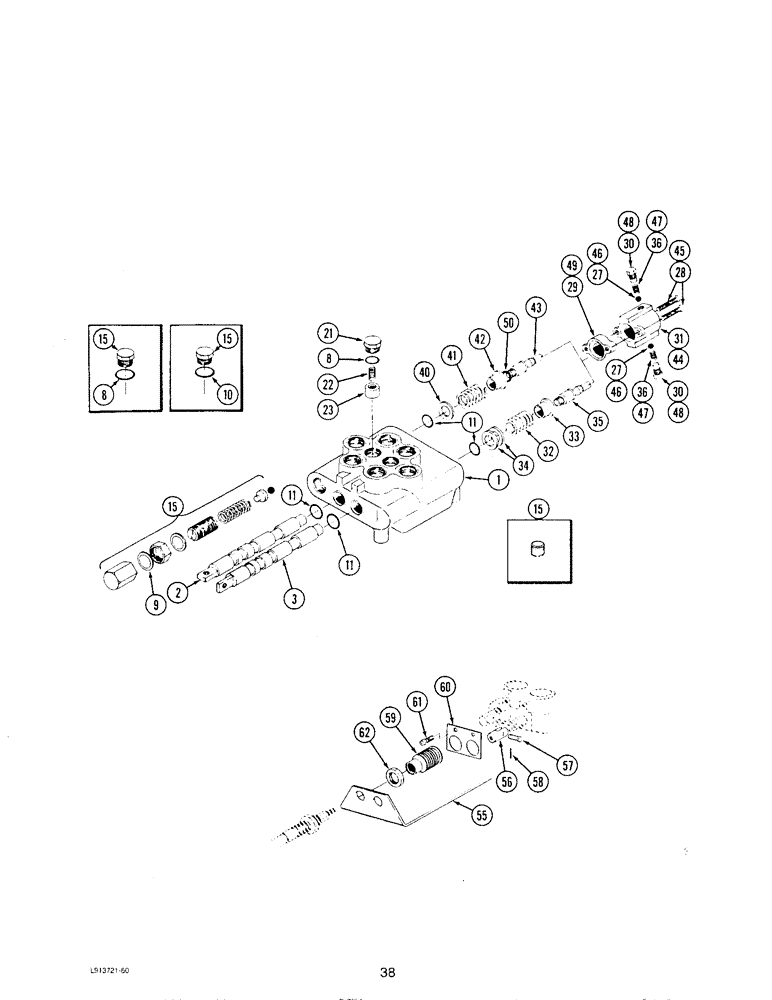

Запчасти Case IH L108 (38) - HYDRAULIC CONTROL VALVE, VALVE MOUNTING (08) - HYDRAULICS

1349639C1

VALVE

ASSEMBLY - hydraulic control, Includes: Ref. 1 - 50

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom

1шт.

1349646C1

SEAL KIT

- seal, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - sealing

3шт.

9

NSS

NOT SOLD SEPARAT

GASKET - relief valve

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - spool

4шт.

15

1349650C1

KIT

- relief valve

1шт.

H673572

KIT

- load check, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

23

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

1349647C1

KIT

- regenerative detent, Includes: Ref. 27 - 36

1шт.

27

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

28

NSS

NOT SOLD SEPARAT

SCREW - retaining

2шт.

29

NSS

NOT SOLD SEPARAT

SPACER - detent

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - detent

2шт.

31

NSS

NOT SOLD SEPARAT

CAP - detent end

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

33

NSS

NOT SOLD SEPARAT

SPACER - detent

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - retaining

2шт.

35

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - detent

2шт.

1349648C1

KIT

- detent float, Includes: Ref. 40 - 50

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - return spring

2шт.

41

NSS

NOT SOLD SEPARAT

SPRING - return, spool

1шт.

42

NSS

NOT SOLD SEPARAT

SPACER - detent

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

44

NSS

NOT SOLD SEPARAT

CAP - end, detent

1шт.

45

NSS

NOT SOLD SEPARAT

SCREW - end cap

2шт.

46

NSS

NOT SOLD SEPARAT

BALL - detent

2шт.

47

NSS

NOT SOLD SEPARAT

SPRING - detent ball

2шт.

48

NSS

NOT SOLD SEPARAT

PLUG - detent ball

2шт.

49

NSS

NOT SOLD SEPARAT

SPACER - detent

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

55

1540049C1

PLATE

- valve mounting

1шт.

56

1540126C1

ADAPTER

ADAPTOR - spool, valve mounting

2шт.

57

1540124C1

PIN

- clevis, valve mounting

2шт.

58

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Valve mounting 3/32" x 1/2"

2шт.

59

1540036C1

BELLOWS

- rubber, valve mounting

2шт.

60

1540058C1

PLATE

- bellows retaining, valve mounting

1шт.

61

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

Valve mounting Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

62

1540095C1

NUT

- hex, 1.5 x 16 mm, valve mounting

2шт.
