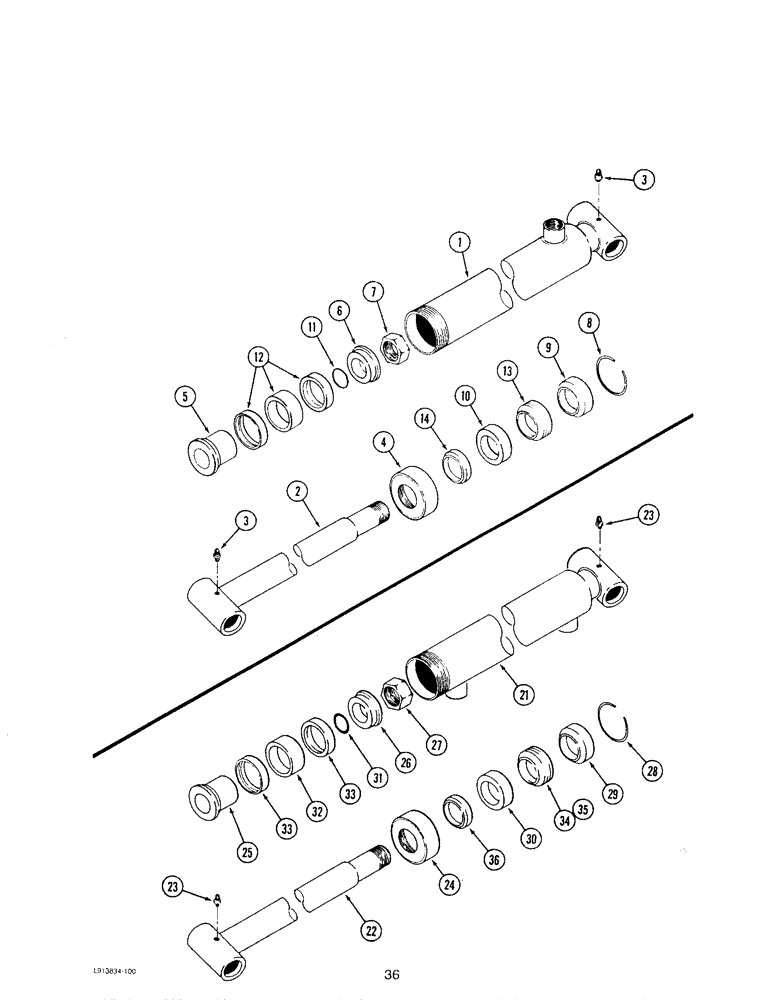

Запчасти Case IH L108 (36) - BOOM CYLINDERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1540012C1
CYLINDER
ASSEMBLY - boom, 1-3/4 x 13-3/4 inch, L106 Loader, Includes: Ref. 1 - 14
2шт.
1
NSS
NOT SOLD SEPARAT
BODY - cylinder
1шт.
2
1540113C1
ROD ASSY.
ROD - cylinder
1шт.
3
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
2шт.
4
1960656C1
NUT
- cylinder retaining
1шт.
5
1960657C1
PISTON
- cylinder
1шт.
6
1960662C1
PISTON
END - piston
1шт.
7
19638R1
LOCK NUT,3/4"-16, GB
NUT - lock, 3/4 inch NF
1шт.
8
1960663C1
CLIP
WIRE - retaining
1шт.
9
1960664C1
PACKING
GUIDE - packing, male
1шт.
10
1958493C1
PACKING
GUIDE - packing, female
1шт.
1960258C1
SEAL KIT
- seal, Includes: Ref. 11 - 14
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - piston rod
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL ASSEMBLY - piston
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL ASSEMBLY - cylinder
1шт.
14
NSS
NOT SOLD SEPARAT
WIPER - rod
1шт.
1969352C1
CYLINDER
ASSEMBLY - boom, 1-3/4 x 16-1/2 inch, L108 Loader, Includes: Ref. 21 - 36
2шт.
21
NSS
NOT SOLD SEPARAT
BODY ASSEMBLY - cylinder
1шт.
22
1969353C1
ROD
ASSEMBLY - cylinder
1шт.
23
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
2шт.
24
1960656C1
NUT
- cylinder retaining
1шт.
25
1960657C1
PISTON
- cylinder
1шт.
26
1960662C1
PISTON
END - piston
1шт.
27
19638R1
LOCK NUT,3/4"-16, GB
NUT - lock, 3/4 inch NF
1шт.
28
1960663C1
CLIP
WIRE - retaining
1шт.
29
1960664C1
PACKING
GUIDE - packing, male
1шт.
30
1958493C1
PACKING
GUIDE - packing, female
1шт.
1960258C1
SEAL KIT
- seal, Includes: Ref. 31 - 36
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - piston rod
1шт.
32
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
33
NSS
NOT SOLD SEPARAT
RING - wear, piston
2шт.
34
NSS
NOT SOLD SEPARAT
V-RING - rubber
1шт.
35
NSS
NOT SOLD SEPARAT
V-RING - fiber
2шт.
36
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Выбрано товаров: 34
