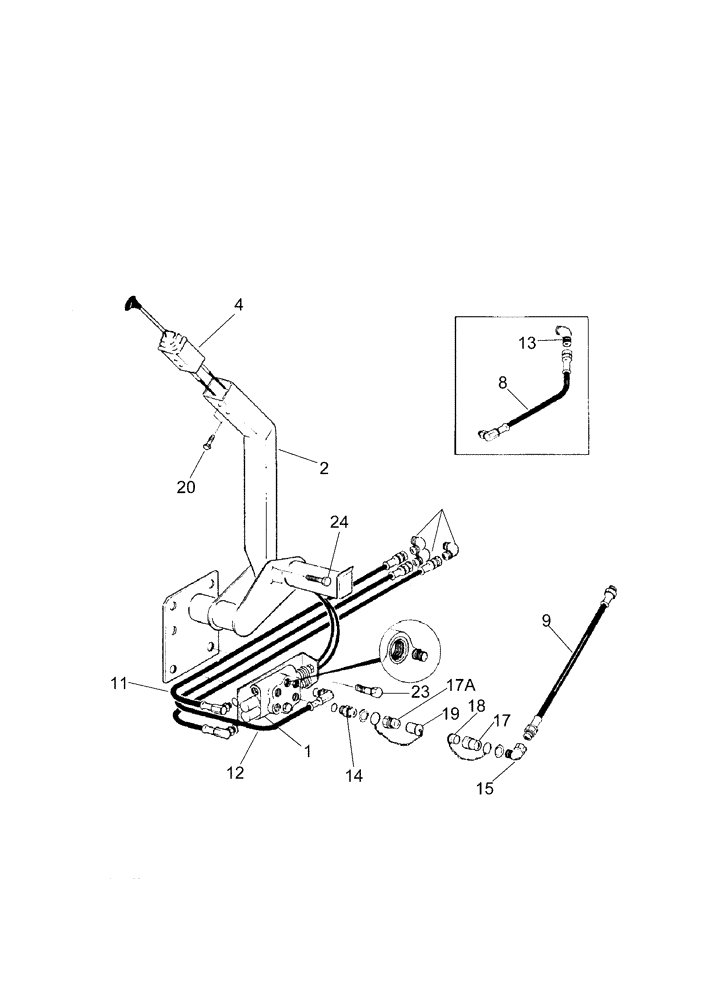

Запчасти Case IH L108 (32) - CONTROL HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 39)

1шт.

2

1540053C1

STAND

ASSEMBLY - valve (L106)

1шт.

2

1540087C1

STAND

ASSEMBLY - valve (L108)

1шт.

4

REF

INSTRUCTION

CONTROL ASSEMBLY - hdyraulic valve (See Figure 41)

1шт.

5

1540125C1

CABLE

- valve control

2шт.

8

1540104C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 15 inch (L106)

1шт.

9

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE ASSEMBLY - hydraulic, 3/8 x 54 inch

4шт.

10

1540109C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 21 inch (L106)

1шт.

10

1540104C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 15 inch (L108)

1шт.

11

1540110C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 18 inch (L106)

1шт.

11

1540104C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 15 inch (L108)

1шт.

12

1540103C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 20 inch (L108)

1шт.

13

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

- 45 degree, 9/16-18 flare x 3/8 inch PT (L106)

1шт.

14

1540099C1

FITTING

ADAPTER - hydraulic

4шт.

15

218-924

ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

- 90 deg, 1/4 inch PT x swivel straight pipe thread

4шт.

16

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 9/16-18 flare x 3/8 inch PT (L106)

2шт.

16

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 9/16-18 flare x 3/8 inch PT (L108)

3шт.

17

166122C92

ASSEMBLY

COUPLER - quick, 1/4 inch

1шт.

17a

166123C91

COUPLING

COUPLER - male

1шт.

18

1540097C1

PLUG

ASSEMBLY - dust

4шт.

THERE IS A PLUG AVAILABLE, 1/4" NTP-13/32 HEIGHT, QUANTITY (1)

1шт.

19

1540098C1

CAP

ASSEMBLY - dust coupler

4шт.

20

840-3825

SCREW,Pan, M8 x 25mm, Cl 4.8

BOLT - hex socket, 8 - 1.25 x 25 mm

2шт.

23

61-36224

HEX SOC SCREW,5/8" - 11 x 1-1/2"

BOLT - hex, 5/8 NC x 1-1/2 inch

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

25

62-3318

HEX SOC SCREW,5/16"-24 x 1/2"

2шт.
