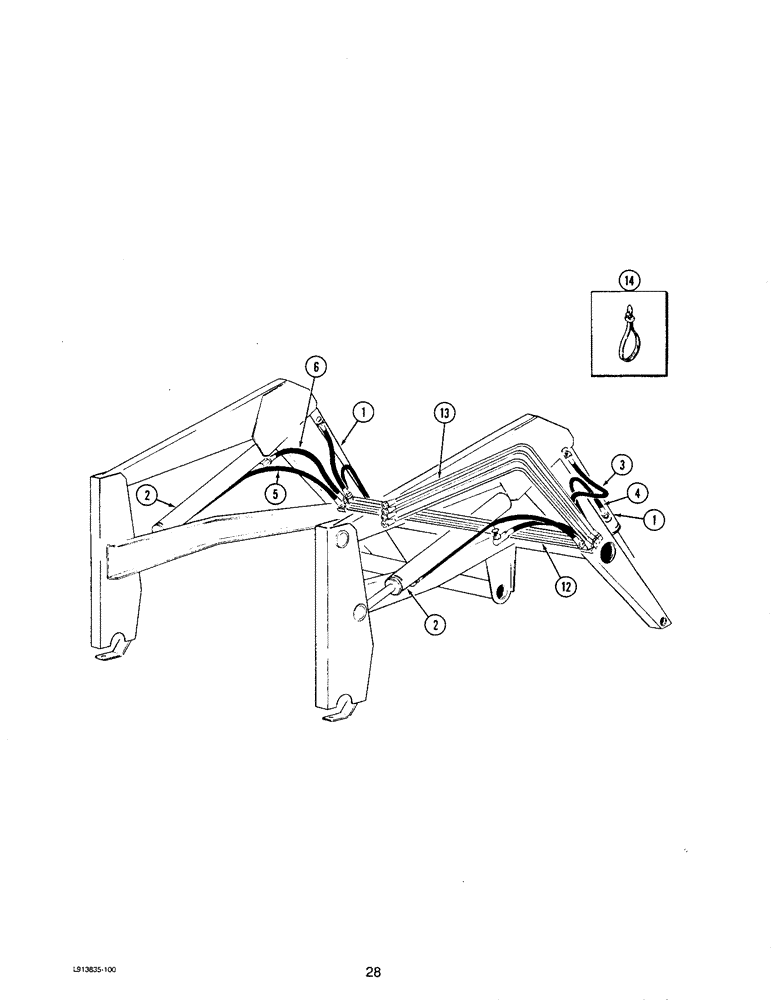

Запчасти Case IH L106 (28) - BUCKET AND BOOM HYDRAULICS, L106 LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket (See Figure 35)

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom (See Figure 37)

2шт.

3

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

Bucket Dump, Inch 6.35 mm ID x 482.60 mm, SAE 100 R1

2шт.

For initial service also order (1) 218-5057 connector and (1) 237-6006 O-ring for each hose.

1шт.

4

1336714C1

HYDRAULIC HOSE

HOSE ASSEMBLY - bucket rollback, 1/4 x 15 inch

2шт.

For initial service also order (1) 218-5057 connector and (1) 237-6006 O-ring for each hose.

1шт.

5

1254527C2

HYDRAULIC HOSE

HOSE ASSEMBLY - boom lower, 1/4 x 37 inch

2шт.

For initial service also order (1) 218-5057 connector and (1) 237-6006 O-ring for each hose.

1шт.

6

1969386C1

HOSE

ASSEMBLY - boom raise, 1/4 x 23 inch

2шт.

For initial service also order (1) 218-5105 elbow and (1) 237-6006 O-ring for each hose.

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 flared x 9/16-18 inch O-ring boss (Not shown)

6шт.

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 9/16-18 flared x 9/16-18 inch O-ring boss (Not shown)

2шт.

12

1960651C1

HYD TUBE

TUBE ASSEMBLY - front

4шт.

13

1960652C1

HYD TUBE,3" OD

TUBE ASSEMBLY - rear

4шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 inch

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

8шт.
