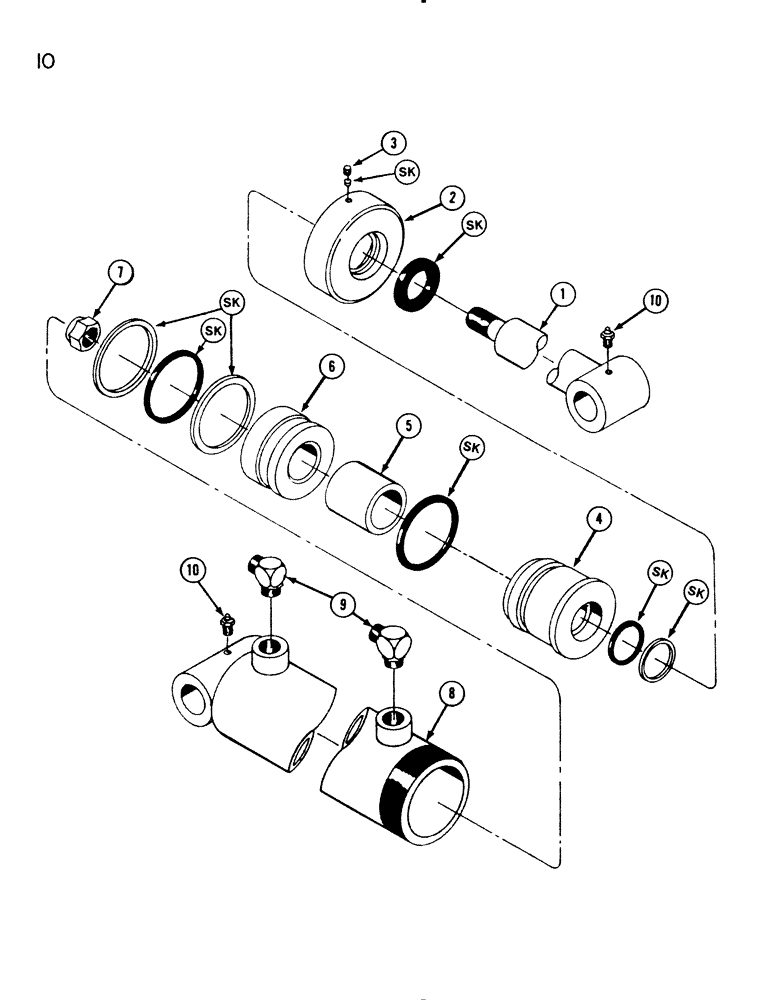

Запчасти Case IH 96L (10) - CYLINDER ATTACHMENT (35) - HYDRAULIC SYSTEMS

T58144

CYLINDER

- attachment 3" (76.2 mm), Includes: Ref. 1 - 8

2шт.

1

T58159

ROD

- assembly, 1-3/4" x 31-1/2", 1" thread

1шт.

2

T57772

CAP

HEAD CAP

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set 1/4 x 1/4 socket head

1шт.

4

T58160

HEAD (CYLINDER)

HEAD - cylinder

1шт.

5

T58161

SPACER

1шт.

6

7036734

PISTON

1шт.

7

T58157

NUT - piston

1шт.

8

T58162

TUBE

- cylinder

1шт.

9

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 Deg. x 3/4"

4шт.

10

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease

4шт.

sk

T58163

SEAL KIT

KIT - seal (includes all Refs. with SK)

1шт.
