Запчасти Case IH 96L (08) - CYLINDER LIFT (35) - HYDRAULIC SYSTEMS

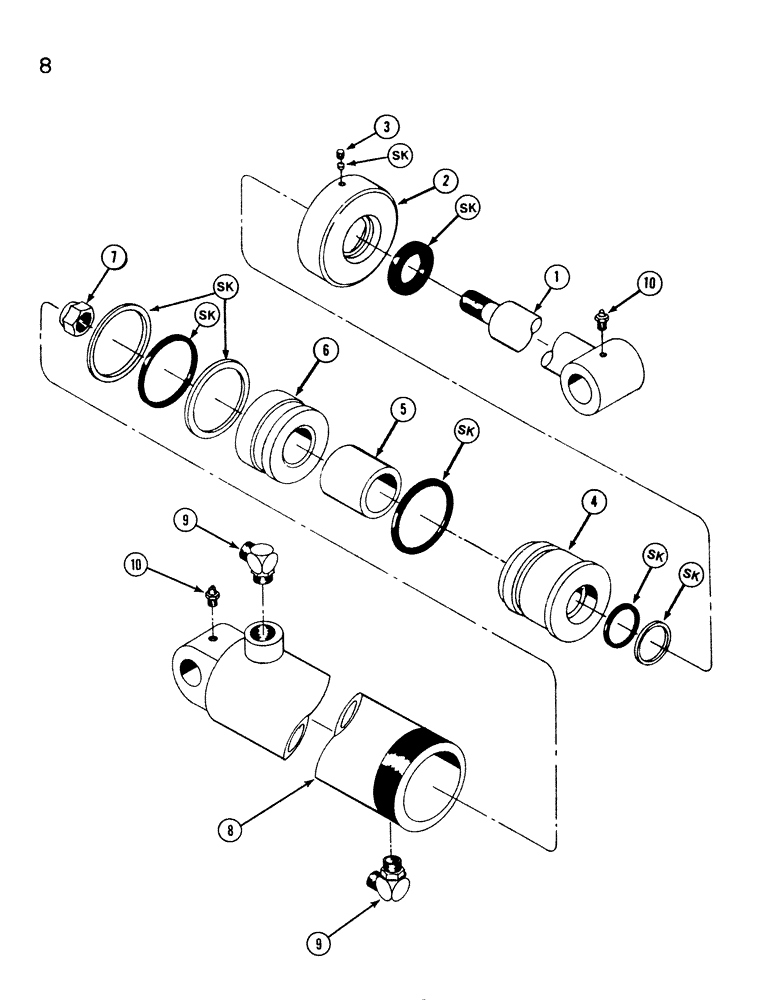

Схема запчастей Case IH 96L - (08) - CYLINDER LIFT (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

T58143

CYLINDER

- lift 3" (76.2 mm)

2шт.

1

T58154

ROD

- assy, 2" x 31-1/2"

1шт.

2

T57772

CAP

HEAD CAP

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set 1/4 x 1/4" socket head

1шт.

4

T57780

HEAD

- cylinder

1шт.

5

T58155

SPACER

1шт.

6

B17274

PISTON

1шт.

7

131-914

NUT,1"-14

NUT - piston

1шт.

8

T58158

TUBE

- cylinder

1шт.

9

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 Deg. x 3/4"

4шт.

10

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease

4шт.

T57781

SEAL

- seal (includes all Refs. with SK)

1шт.

Выбрано товаров: 12
