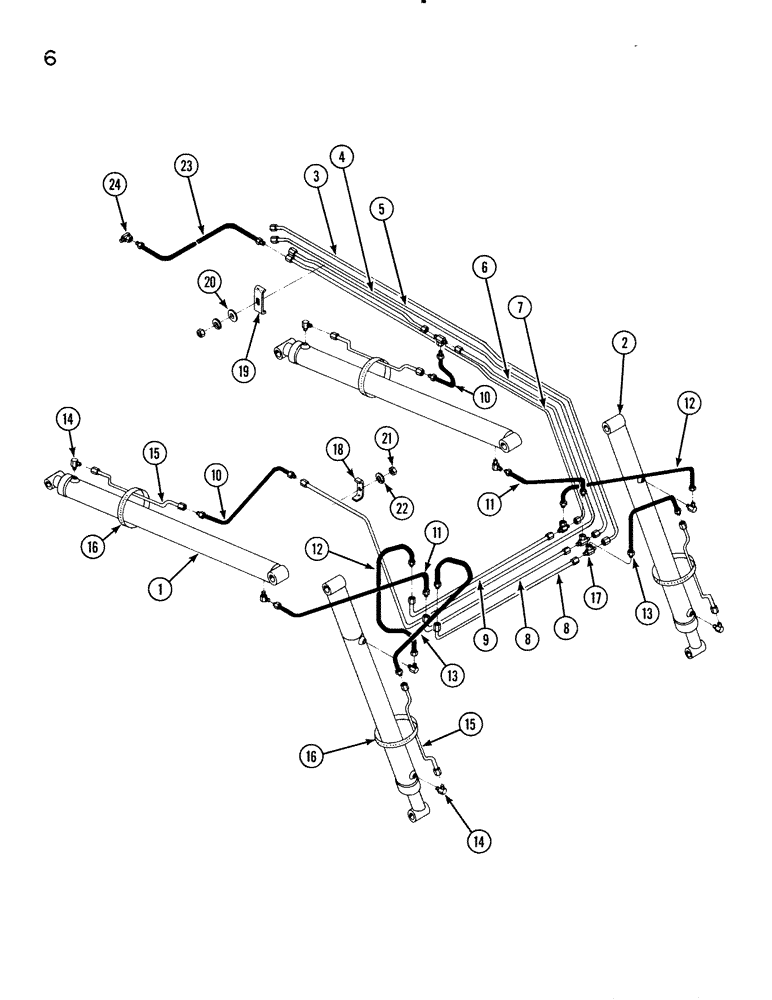

Запчасти Case IH 96L (06) - HYDRAULIC TUBES AND HOSES (35) - HYDRAULIC SYSTEMS

1

T58143

CYLINDER

- lift (see Figure 8)

2шт.

2

T58144

CYLINDER

- attachment (see Figure 10)

2шт.

3

T58145

TUBE,0.625" OD

- hydraulic

1шт.

4

T58146

TUBE,0.625" OD x 28.25, 4" L

- hydraulic

1шт.

5

T58147

TUBE,0.625" OD

- hydraulic

1шт.

6

T58148

TUBE,0.625" OD

- hydraulic

1шт.

7

T58149

TUBE

- hydraulic

1шт.

8

T55858

TUBE,0.625" OD x 25.5, 2.5" L

- hydraulic

2шт.

9

T55967

TUBE,30.5, 3" L

- hydraulic

1шт.

10

T55954

HOSE

- 1/2 x 21-7/8" (21.7 x 555.6 mm)

2шт.

11

T55867

HOSE

- 1/2 x 26" (21.7 x 660.4 mm)

2шт.

12

T58150

HOSE - 1/2 x 30" (21.7 x 762.0 mm)

2шт.

13

T58151

HOSE

- 1/2 x 30" (21.7 x 762.0 mm)

2шт.

14

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 Deg. x 3/4"

8шт.

15

T55982

TUBE,0.625" OD x 19.187" L

- cylinder

4шт.

16

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cylinder

4шт.

17

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

FITTING - tee

4шт.

18

T58152

CLAMP

- tube

2шт.

19

T57930

CLAMP

- tube

4шт.

20

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

23

T58153

HOSE

- 1/2 x 192" (12.7 x 4876.8 mm)

4шт.

24

T50083

FITTING - 90 Deg. x pipe

4шт.
