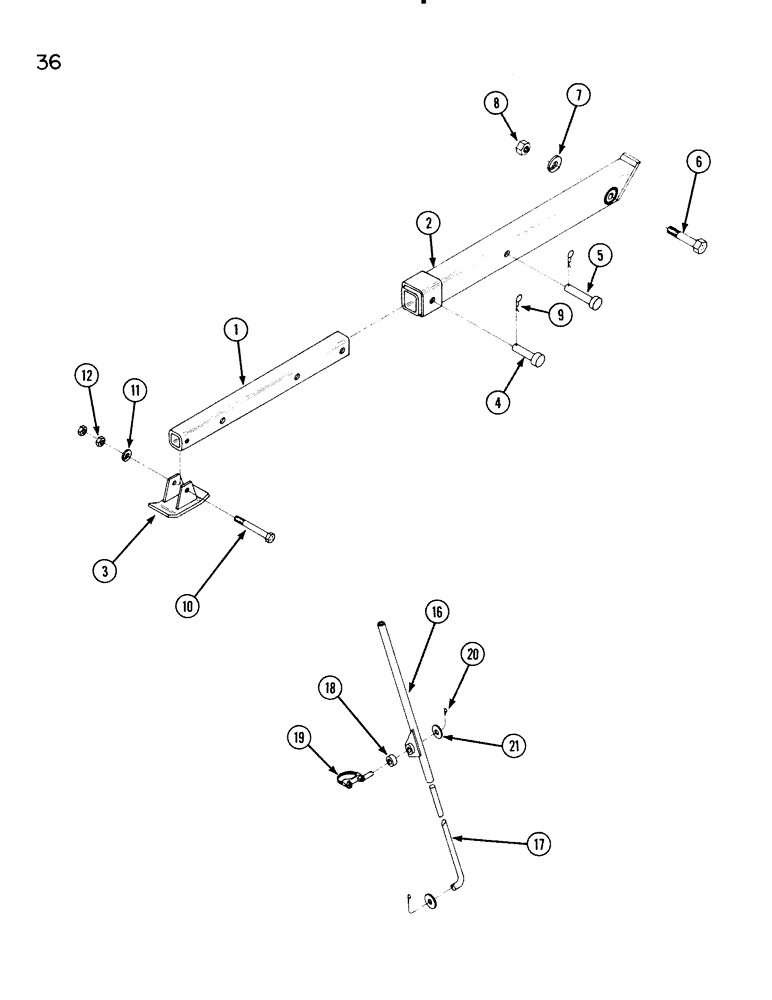

Запчасти Case IH 96L (36) - PARKING STANDS (82) - FRONT LOADER & BUCKET

1

T58193

BOX

parking stand

2шт.

2

T58194

STAND

parking assembly

2шт.

3

T54570

FOOT

PADDLE - foot

2шт.

4

H120683

PIN,15.88mm OD x 94.06mm L

clevis 5/8 x 3-1/2" (15.9 x 88.9 mm)

2шт.

5

T57024

PIN

clevis 5/8 x 4" (15.9 x 101.6 mm)

2шт.

6

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-108

NUT,3/4"-10, G5

2шт.

9

T54573

PIN

COTTER - hairpin

4шт.

10

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

T58195

SUPPORT TUBE,1.25, 2.75" L

support assembly, bucket level indicator

1шт.

17

T58196

ROD

bucket level indicator

1шт.

18

T57063

SPACER

BUSHING - bucket level indicator

1шт.

19

T55514

CLAMP

assembly, bucket level indicator

1шт.

20

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Bucket level indicator 1/8" x 3/4"

2шт.

21

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, bucket level indicator

2шт.
