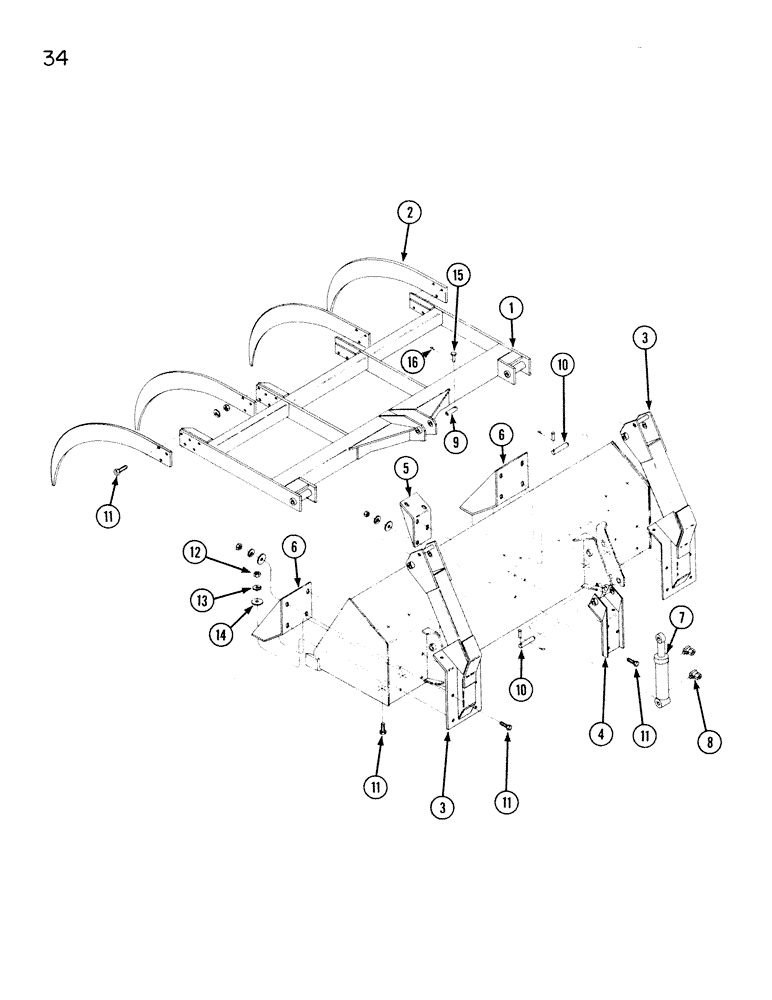

Запчасти Case IH 96L (34) - GRAPPLE, FOUR TINE (82) - FRONT LOADER & BUCKET

1

T58187

PACKAGE, REPAIR

SWING ARM - assembly

1шт.

2

T57742

TOOTH

4шт.

3

T58188

PEDESTAL

- assembly

2шт.

4

T58189

BRACKET

- cylinder mount

1шт.

5

T58190

SUPPORT

BRACKET - center support

1шт.

6

T58191

SUPPORT

BRACKET - support assembly

2шт.

7

T57744

CYLINDER

- 2-1/2" (63.5 mm) see Figure 17

1шт.

8

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

FITTING - 90 Deg. x 3/4" o-ring

2шт.

9

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2" (28.6 x 114.3 mm)

1шт.

10

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 1689.1 mm)

3шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

33шт.

12

131-70

NUT,1/2"-13, GB

NUT - lock 1/2"

33шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

33шт.

14

195-533

WASHER,1/2", SAE

- flat 1/2" hardened

17шт.

15

T50008

PIN

- clevis

4шт.

16

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

219-16

LUBE NIPPLE,5/16" NPTF

ZERK - grease

4шт.
