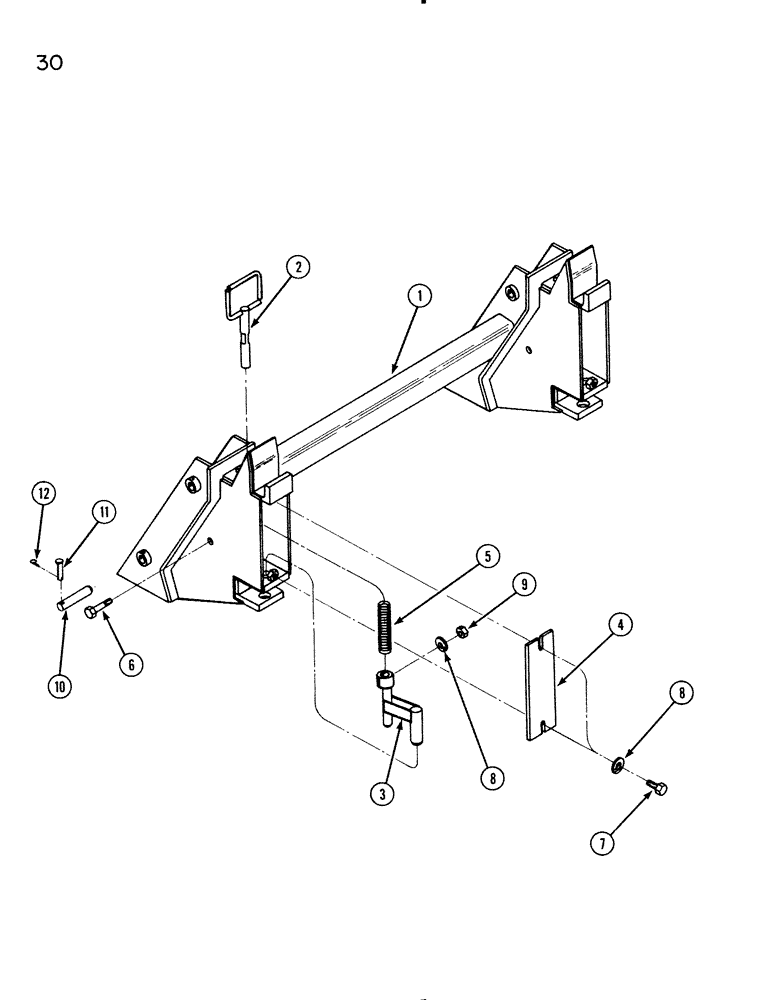

Запчасти Case IH 96L (30) - QUICK COUPLER (82) - FRONT LOADER & BUCKET

1

T58181

FRAME

- main

1шт.

2

T58182

HANDLE

- assembly

2шт.

3

T58183

PIN ASSY.

PIN - assembly

2шт.

4

T58184

COVER

BAR - cover

2шт.

5

T58038

SPRING

2шт.

6

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

11

T50008

PIN

- clevis

2шт.

12

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
