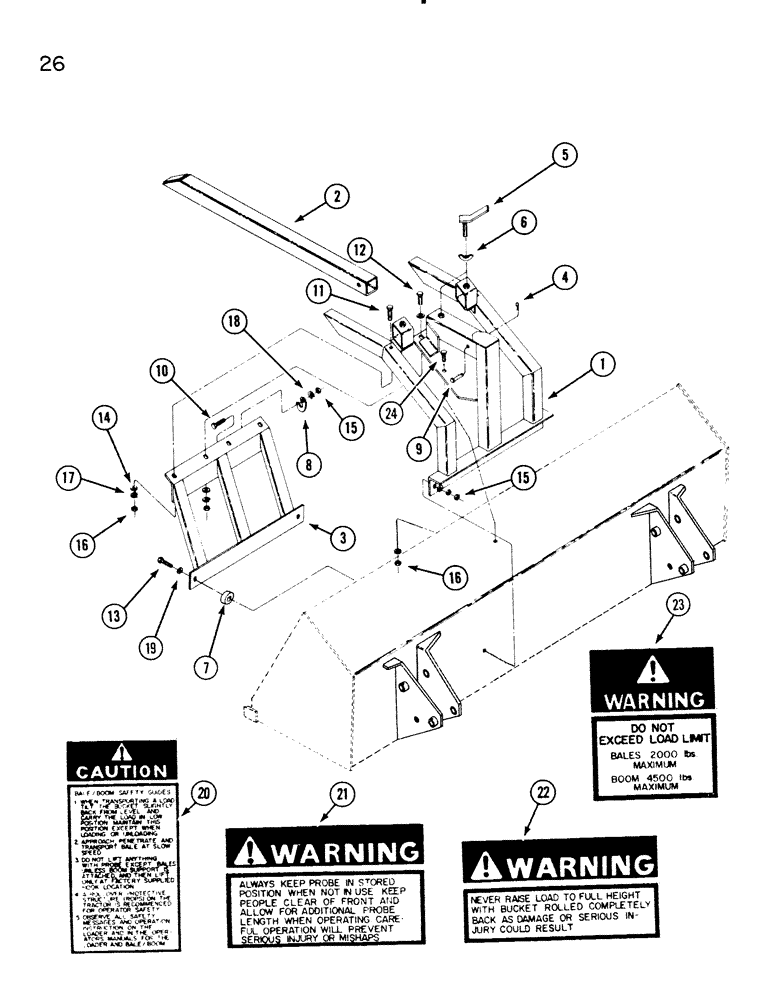

Запчасти Case IH 96L (26) - BALE BOOM (82) - FRONT LOADER & BUCKET

1

T58179

MOUNTING PARTS

MOUNT - bale probe

1шт.

2

T57906

TUBE

PROBE - assembly

1шт.

3

T58209

SUPPORT

- inside

1шт.

Another support used (not a sub) T58209.

1шт.

4

T54573

PIN

COTTER

1шт.

5

T53944

HANDLE

LOCK - handle

2шт.

6

129-400

WING NUT,1/2"-13

NUT - wing 1/2" NC

2шт.

7

T58180

BUSHING

- spacer

2шт.

8

T57919

HOOK

- boom

1шт.

9

H120683

PIN,15.88mm OD x 94.06mm L

- clevis

1шт.

10

113-1040

BOLT - 5/8 x 2-1/2" NC hex (Grade 5)

1шт.

11

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

13

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

14

195-106

WASHER,1/2"

- 3/8 x 9/16" x 12 gauge

6шт.

15

129-107

NUT,5/8"-11, G5

5шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

19

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

20

T57917

DECAL

- caution

1шт.

21

T57916

DECAL

- warning

1шт.

22

T57915

DECAL

- warning

1шт.

23

T57914

DECAL

- warning

1шт.

24

113-687

BOLT - 5/8 x 1-3/4" NC hex (Grade 5)

2шт.
