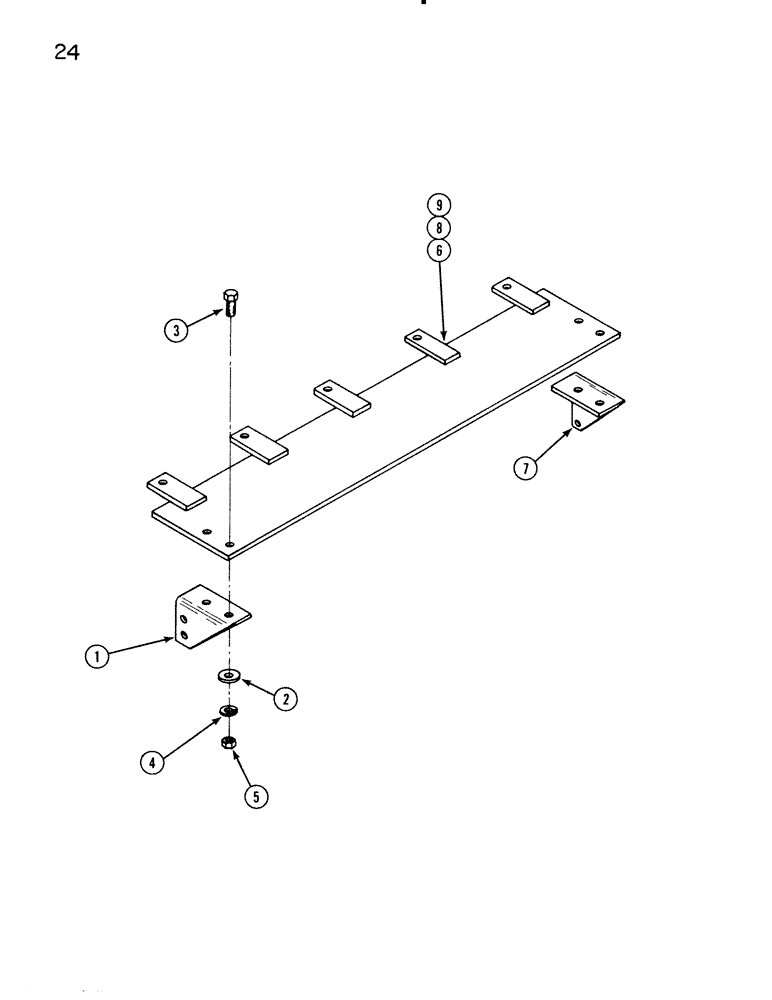

Запчасти Case IH 96L (24) - GUARD PLATES, 72 INCH, 1828.8 MM BUCKET (82) - FRONT LOADER & BUCKET

1

T58118

ATTACHMENT

PLATE - end RH

1шт.

2

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge

4шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

6

T58115

PROTECTOR

PLATE - guard

1шт.

7

T58117

ATTACHMENT

PLATE - end LH

1шт.

1

T8118

PLATE - end RH, 83" (2108.2 mm) bucket

1шт.

2

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge, 83" (2108.2 mm) bucket

4шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

83" (2108.2 mm) bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

13шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 83" (2108.2 mm) bucket 3/8"

13шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 83" (2108.2 mm) bucket 3/8"-16, G5

13шт.

8

T58114

PROTECTOR

PLATE - guard, 83" (2108.2 mm) bucket

1шт.

7

T58117

ATTACHMENT

PLATE - end LH, 83" (2108.2 mm) bucket

1шт.

1

T58118

ATTACHMENT

PLATE - end RH, 96" (2438.4 mm) bucket

1шт.

2

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge, 96" (2438.4 mm) bucket

4шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

96" (2438.4 mm) bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

13шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 96" (2438.4 mm) bucket 3/8"

13шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 96" (2438.4 mm) bucket 3/8"-16, G5

13шт.

7

T58117

ATTACHMENT

PLATE - end LH, 96" (2438.4 mm) bucket

1шт.

9

T58113

PROTECTOR

PLATE - guard, 96" (2438.4 mm) bucket

1шт.
