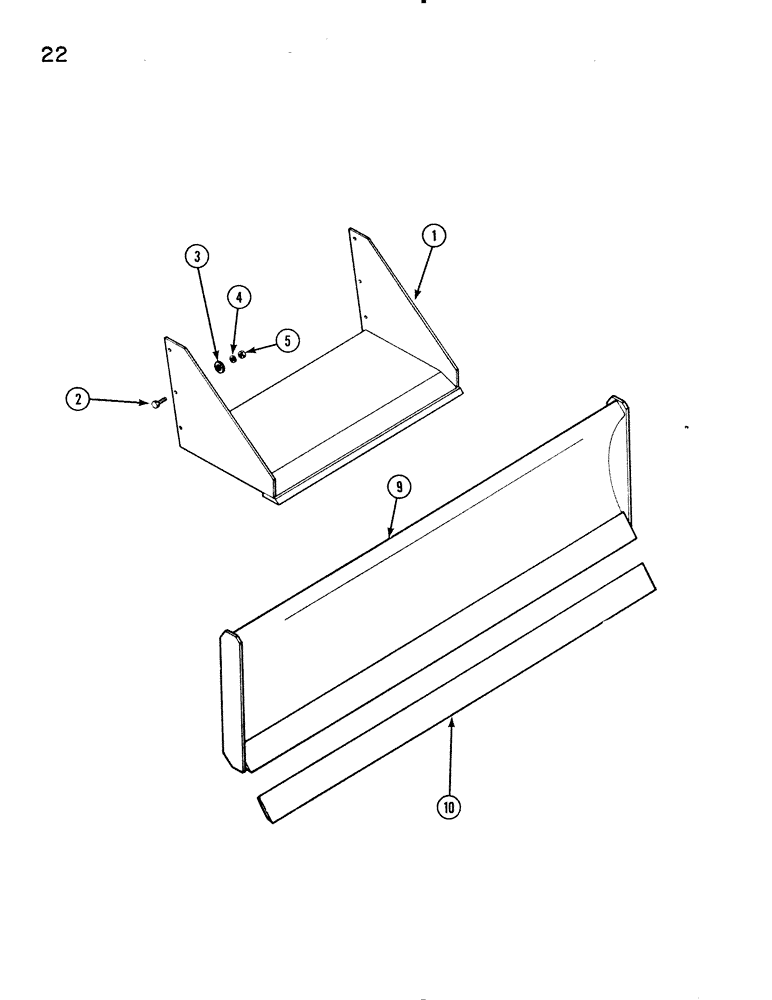

Запчасти Case IH 96L (22) - DIRT PLATE ATTACHMENT (82) - FRONT LOADER & BUCKET

1

T52178

PLATE - dirt

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

3

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

9

T94864

BLADE ASSEMBLY - dirt 8 foot (2.4 m) with replaceable edge (Machinery Item), dirt scraper, Includes: Ref. 10

1шт.

10

T57058

EDGE

replaceable 96" (2438.4 mm), dirt scraper

1шт.
