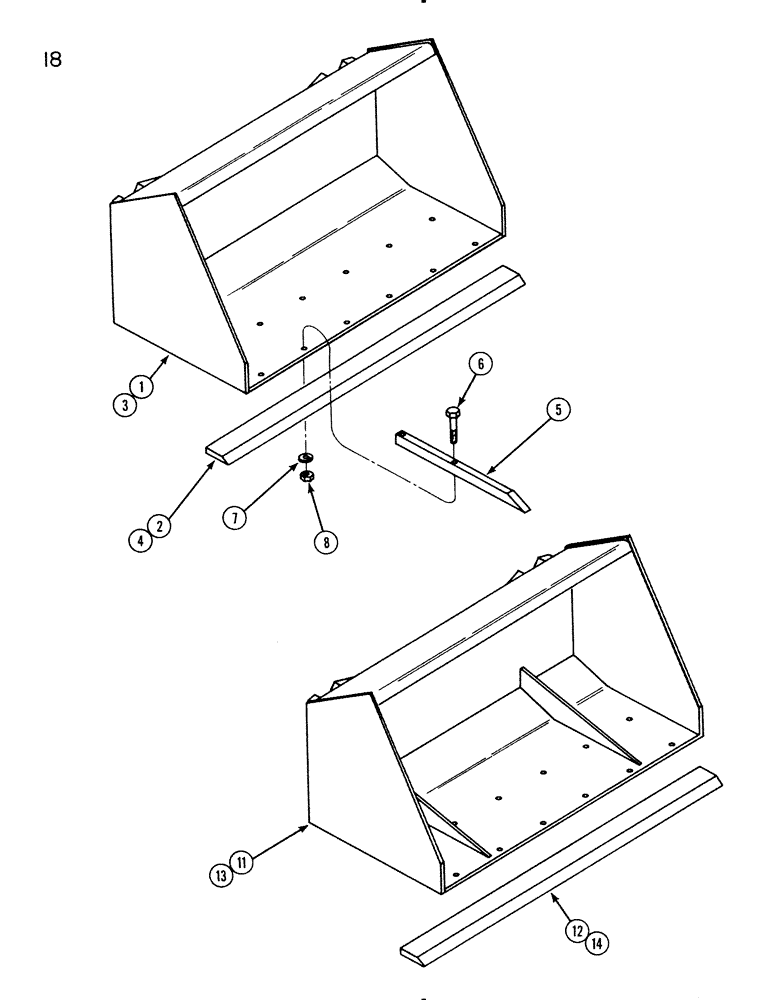

Запчасти Case IH 96L (18) - MATERIAL BUCKET AND TINES (82) - FRONT LOADER & BUCKET

1

T95661

BUCKET ASSEMBLY - 72" (1828.8 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 2

1шт.

2

T50014

EDGE

- replaceable 80" (2032.0 mm)

1шт.

5

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 72" (1828.8 mm) bucket (Machinery Item), Includes: Ref. 6 - 8

8шт.

6

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

3

T95662

BUCKET ASSEMBLY - 83" (2108.2 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 4

1шт.

4

T50015

EDGE

- replaceable 91" (2311.4 mm)

1шт.

5

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 83" (2108.8 mm) bucket (Machinery Item), Includes: Ref. 6 - 8

10шт.

6

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

11

T95663

BUCKET ASSEMBLY - 83" (2108.2 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 12

1шт.

12

T50015

EDGE

- replaceable 91" (2311.4 mm)

1шт.

5

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 83" (2108.2 mm) bucket (Machinery Item), Includes: Ref. 6 - 8

10шт.

6

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

13

T95664

BUCKET ASSEMBLY - 96" (2438.4 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 14

1шт.

14

T53865

EDGE

- replaceable 104" (2141.6 mm)

1шт.

5

T89091

TINE ASSEMBLY 24" (609.6 mm) for 96" (2438.4 mm) (Machiney Item), Includes: Ref. 6 - 8

10шт.

6

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

3/8" NC hex

2шт.

T57929

RIVET - plugs drilled holes (not illustrated)

1шт.
