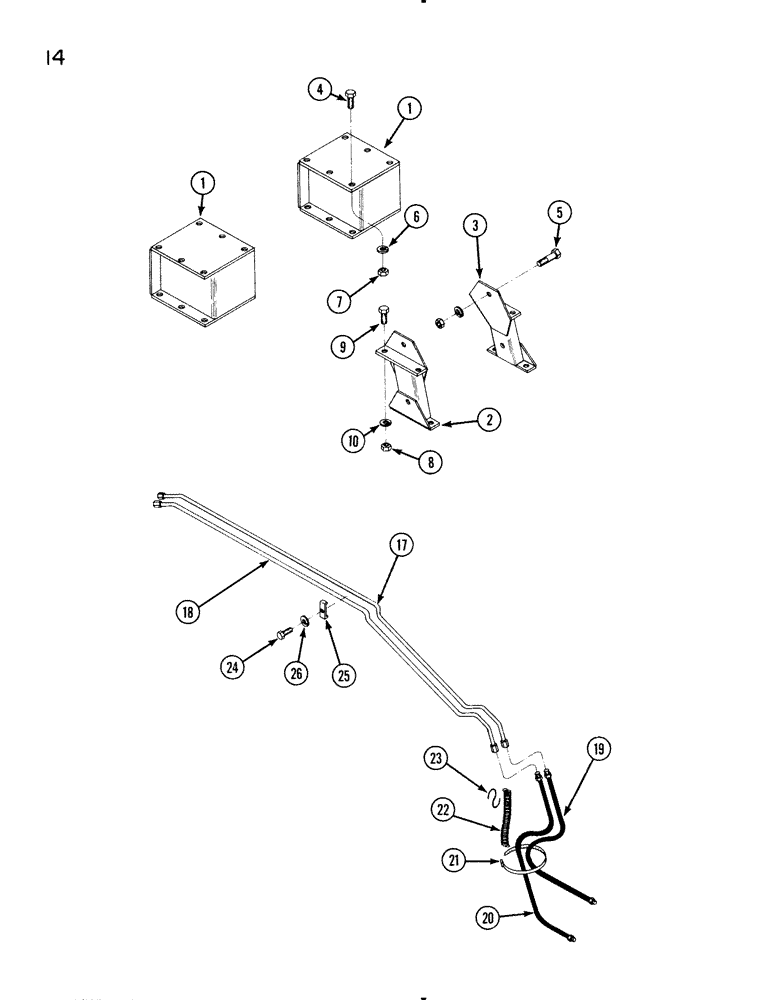

Запчасти Case IH 96L (14) - MFD MOUNTING EQUIPMENT (82) - FRONT LOADER & BUCKET

1

T58172

SPACER

rear assembly

2шт.

2

T58173

SPACER

front assembly

1шт.

3

T58174

SPACER

front assembly

1шт.

4

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

12шт.

5

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4" NC hex (Grade 5)

2шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

7

129-108

NUT,3/4"-10, G5

12шт.

8

131-70

NUT,1/2"-13, GB

lock 5/8" NC hex

6шт.

9

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

17

T58175

TUBE

hydraulic, 3rd cyl kit

1шт.

18

T58176

TUBE,0.625" OD

hydraulic, 3rd cyl kit

1шт.

19

T58177

HOSE

1/2 x 102" (12.7 x 2590.8 mm), 3rd cyl tube kit

1шт.

20

T58178

HOSE

1/2 x 90" (12.7 x 2286.0 mm), 3rd cyl tube kit

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

TIE - nylon, 3rd cyl tube kit

3шт.

22

T55529

SPRING

hanger, 3rd cyl tube kit

1шт.

23

T54015

PIN

HOOK - S, 3rd cyl tube kit

1шт.

24

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3rd cyl tube kit Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

25

T50064

CLAMP

3rd cyl tube kit

3шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder tube kit 5/16"

3шт.
