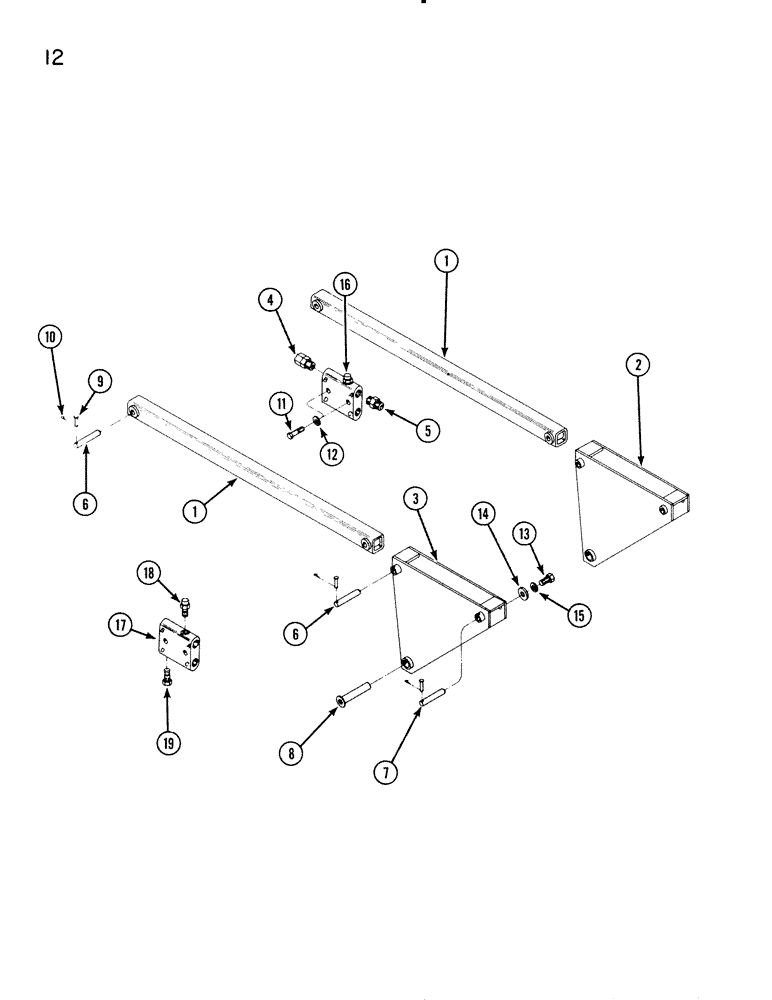

Запчасти Case IH 96L (12) - SELF - LEVEL LINKAGE (82) - FRONT LOADER & BUCKET

1

T58164

BOX

- link assembly

2шт.

2

T58165

LEVEL

- assembly

1шт.

3

T58166

LEVEL

- assembly

1шт.

4

T55228

FITTING

- straight swivel

2шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight

2шт.

6

T58132

PIN

- 1-1/8 x 7" (28.6 x 177.8 mm)

4шт.

7

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

8

T58167

PIN

- assembly

2шт.

9

T50008

PIN

- clevis

6шт.

10

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

6шт.

11

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/4 x 2-1/4" NC hex (Grade 5)

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

T58168

WASHER

PLUG - washer

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

T58169

VALVE

CROSSOVER - relief, Includes: Ref. 17 - 19

1шт.

17

T58170

BODY

- crossover

1шт.

18

T58171

PLUG

- 1900 psi

1шт.

19

T54590

HOSE

PLUG - no relief

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

ZERK - grease

4шт.
