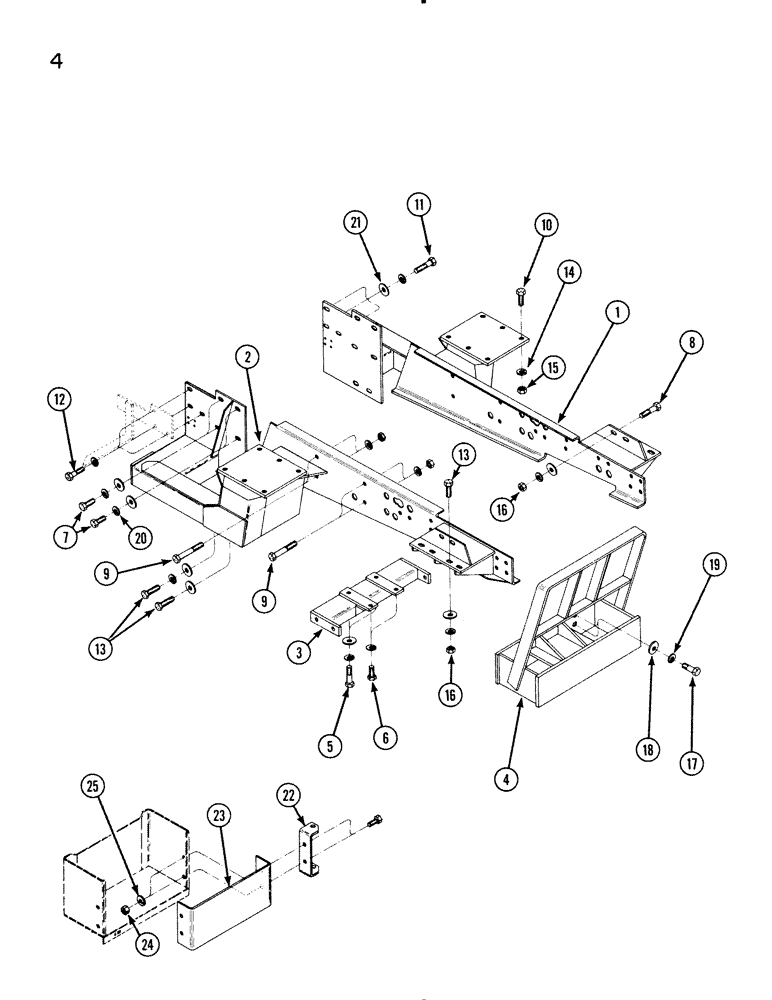

Запчасти Case IH 96L (04) - MOUNTING BRACKETS AND GRILL GUARD (82) - FRONT LOADER & BUCKET

1

T58137

BRACKET

- left assembly

1шт.

2

T58138

BRACKET

- right assembly

1шт.

3

T58139

CROSSBAR

CROSSBRACE - assembly

1шт.

4

T58140

GUARD

- grill assembly

1шт.

5

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

2шт.

6

814-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

7

814-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

8шт.

8

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5)

2шт.

9

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

10

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

12шт.

11

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

3шт.

12

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

3шт.

13

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

15

129-108

NUT,3/4"-10, G5

12шт.

16

131-70

NUT,1/2"-13, GB

NUT - lock 5/8" NC hex

18шт.

17

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- 20 x 2.5P x 55 mm

4шт.

18

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

4шт.

19

192-29

LOCK WASHER,7/8"

7/8"

4шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

36шт.

21

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4 x 11/16" I.D. x 10 gauge

26шт.

22

T58141

BAR

BATTERY - bar attach

1шт.

23

T58142

BAR

BATTERY - bar attach

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
