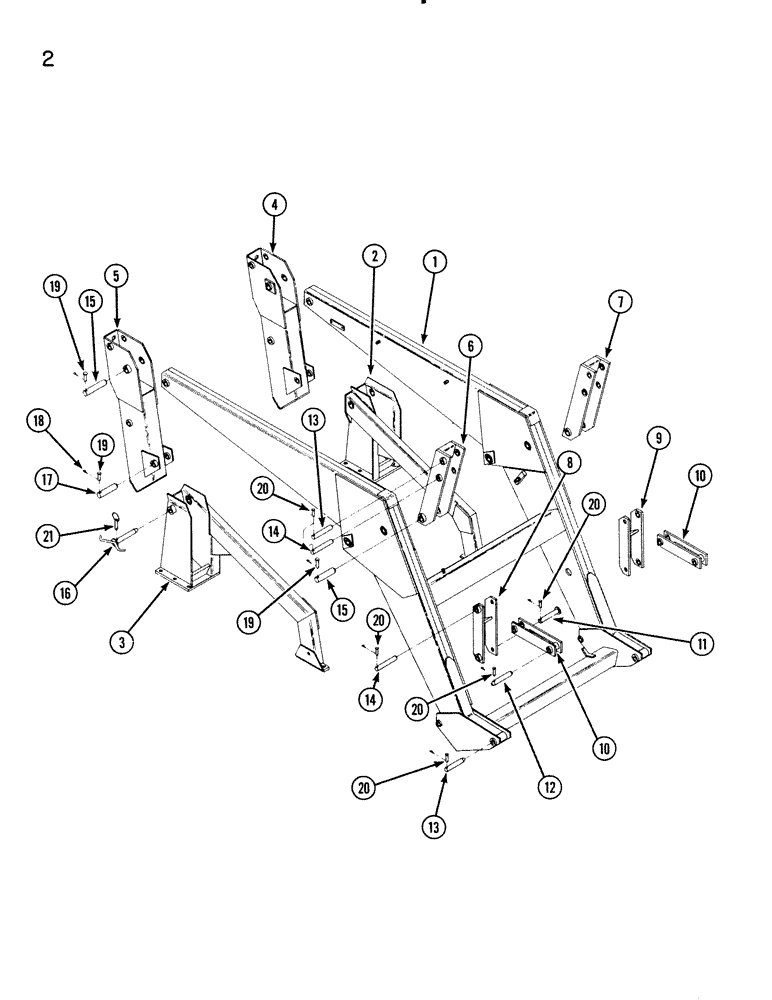

Запчасти Case IH 96L (02) - MAINFRAME, PEDESTAL, SUBFRAME, PINS AND STANDARD LINKAGE (82) - FRONT LOADER & BUCKET

1

T58120

FRAME

- main

1шт.

2

T58121

FRAME

SUBFRAME - left

1шт.

3

T58122

FRAME

SUBFRAME - right

1шт.

4

T58123

PEDESTAL

- left

1шт.

5

T58124

PEDESTAL

- right

1шт.

6

T58125

BRACKET

- attachment cylinder

1шт.

7

T58126

BRACKET

- attachment cylinder

1шт.

8

T58127

BRACKET

LINKAGE - right

1шт.

9

T58128

BRACKET

LINKAGE - left

1шт.

10

T58129

BRACKET

LINKAGE - bucket

2шт.

11

T58130

PIN

- assembly

2шт.

12

T58131

PIN

- 1-1/8 x 7" (28.6 x 177.8 mm)

2шт.

13

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

4шт.

14

T58132

PIN

- 1-1/8 x 7" (28.6 x 177.8 mm)

4шт.

15

T58133

HEADLESS PIN,33.34mm OD x 170mm L

PIN - 1-5/16 x 6-5/8" (33.3 x 168.3 mm)

4шт.

16

T58134

PIN ASSY.

PIN - assembly

2шт.

17

T58135

PIN

- 1-5/16 x 5-11/16" (33.3 x 144.5 mm)

2шт.

18

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

18шт.

19

T53967

PIN

- clevis

6шт.

20

T50008

PIN

- clevis

12шт.

21

T58136

PIN

- ball

2шт.

Should use grease fitting 219-16.

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease

16шт.
