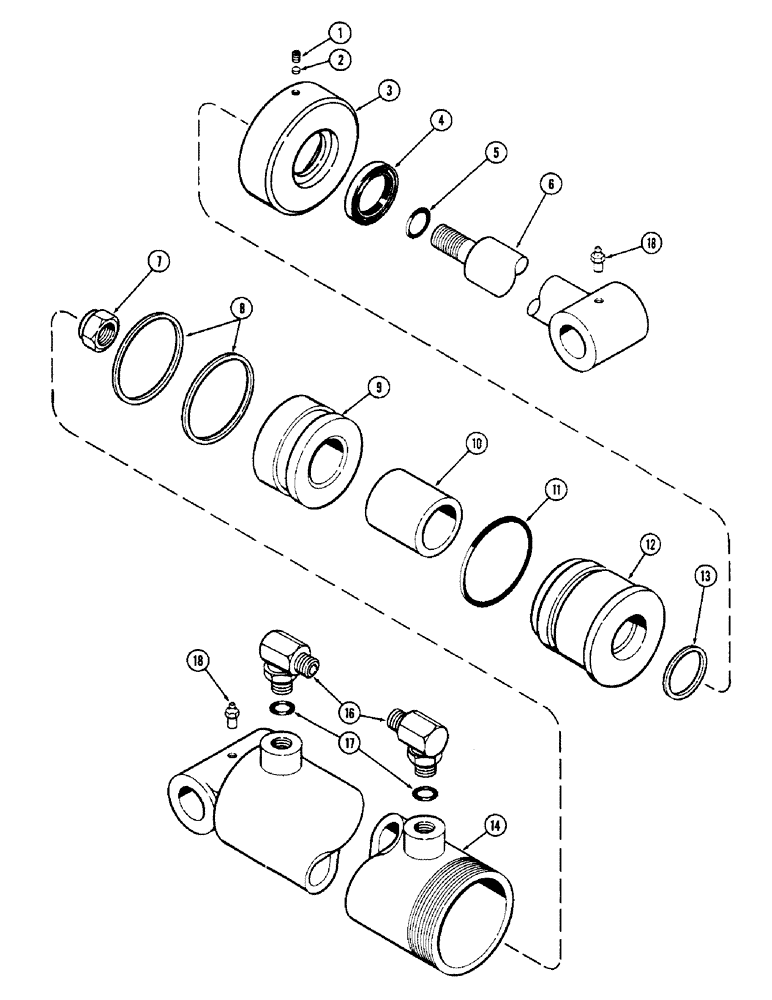

Запчасти Case IH 90 (14) - T57026 LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

T57026

CYLINDER - lift 3" (76.2 mm) complete, Includes: Ref. 1 - 14

2шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of seal kit T63136

1шт.

3

T55472

HEAD

CAP

1шт.

4

B17292

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit T63136

1шт.

5

D32114

O-RING,0.75" ID x 0.875" OD

- 7/8 x 3/4 x 1/16" (22.2 x 19.1 x 1.6 mm)

1шт.

Part of seal kit T63136

1шт.

6

T57028

ROD - cylinder

1шт.

7

131-922

NUT - cylinder rod 7/8" NF

1шт.

The latest change or addition since the last issue.

1шт.

8

T53173

CUP

SEAL - backup

2шт.

Part of seal kit T63136

1шт.

9

T53170

PISTON

- cylinder

1шт.

10

T53979

SPACER - cylinder

1шт.

11

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

-3 x 2-5/8 x 3/16" (76.2 x 66.7 x 4.8 mm)

1шт.

Part of seal kit T63136

1шт.

12

T53168

HEAD - cylinder

1шт.

13

T53172

CUP

SEAL - backup

1шт.

Part of seal kit T63136

1шт.

14

T57027

TUBE - cylinder 42.38" L

1шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes: Ref. 17

4шт.

18

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

T63136

SEAL

SEAL - Includes: Ref. 2, 4, 5, 8, 11 and 13

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
