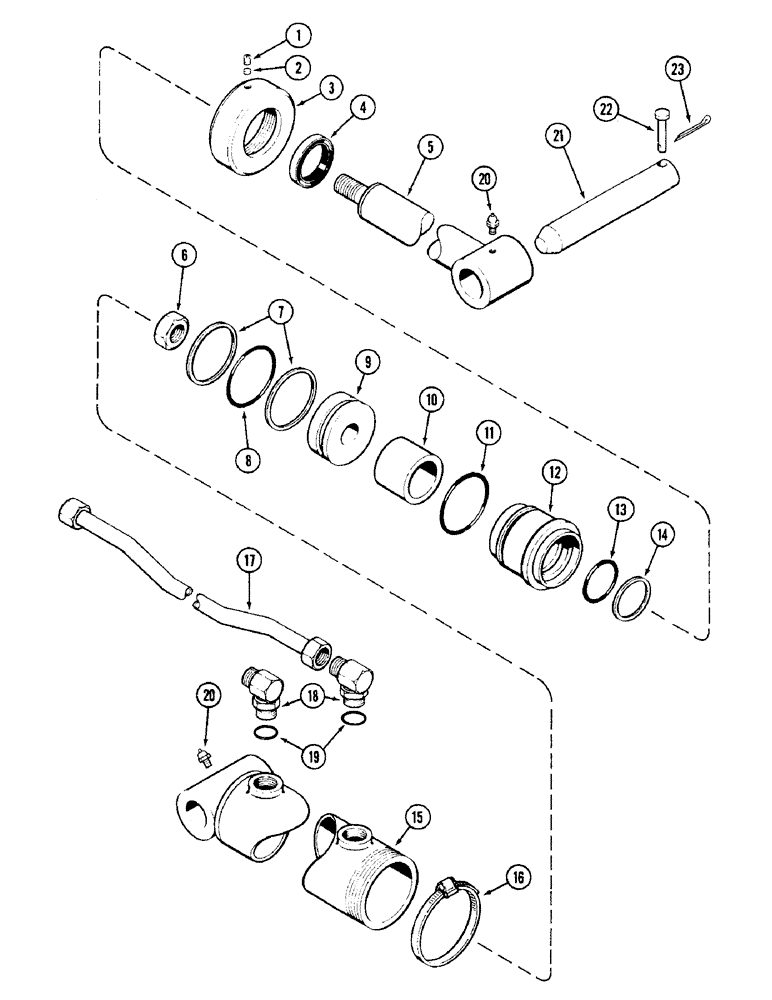

Запчасти Case IH 90 (13A) - T57776 BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

T57776

CYLINDER

- bucket 3" (76.2 mm) complete, Includes: Ref. 1 - 15

2шт.

The latest change or addition since the last issue.

1шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of seal kit T57775

1шт.

3

T57772

CAP

HEAD CAP

1шт.

4

A41785

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit T57775

1шт.

5

T57773

ROD

- cylinder

1шт.

6

131-909

LOCK NUT,3/4"-16

NUT - cylinder rod 3/4" NF

1шт.

7

B17193

SEALING WASHER

- backup

2шт.

Part of seal kit T57775

1шт.

8

B17304

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

- cylinder

1шт.

Part of seal kit T57775

1шт.

9

B17274

PISTON

- cylinder

1шт.

10

T55637

SPACER

- cylinder

1шт.

11

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- 3 x 2-5/8 x 3/16" (76.2 x 66.7 x 4.8 mm)

1шт.

Part of seal kit T57775

1шт.

12

T57771

HEAD

- cylinder

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-3/4 x 9/64" (37.7 x 44.5 x 3.6 mm)

1шт.

Part of seal kit T57775

1шт.

14

B17326

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit T57775

1шт.

15

T57774

TUBE - cylinder

1шт.

16

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - cylinder

2шт.

The latest change or addition since the last issue.

1шт.

17

T55982

TUBE,0.625" OD x 19.187" L

- hydraulic

2шт.

The latest change or addition since the last issue.

1шт.

18

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes: Ref. 19

4шт.

The latest change or addition since the last issue.

1шт.

20

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

The latest change or addition since the last issue.

1шт.

21

T50016

PIN

- bucket 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

The latest change or addition since the last issue.

1шт.

22

T50008

PIN

- clevis

2шт.

The latest change or addition since the last issue.

1шт.

23

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

The latest change or addition since the last issue.

1шт.

T57775

SEAL

- seal Includes: Ref. 2, 4, 7, 8, 11, 13 and 14

1шт.

The latest change or addition since the last issue.

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
