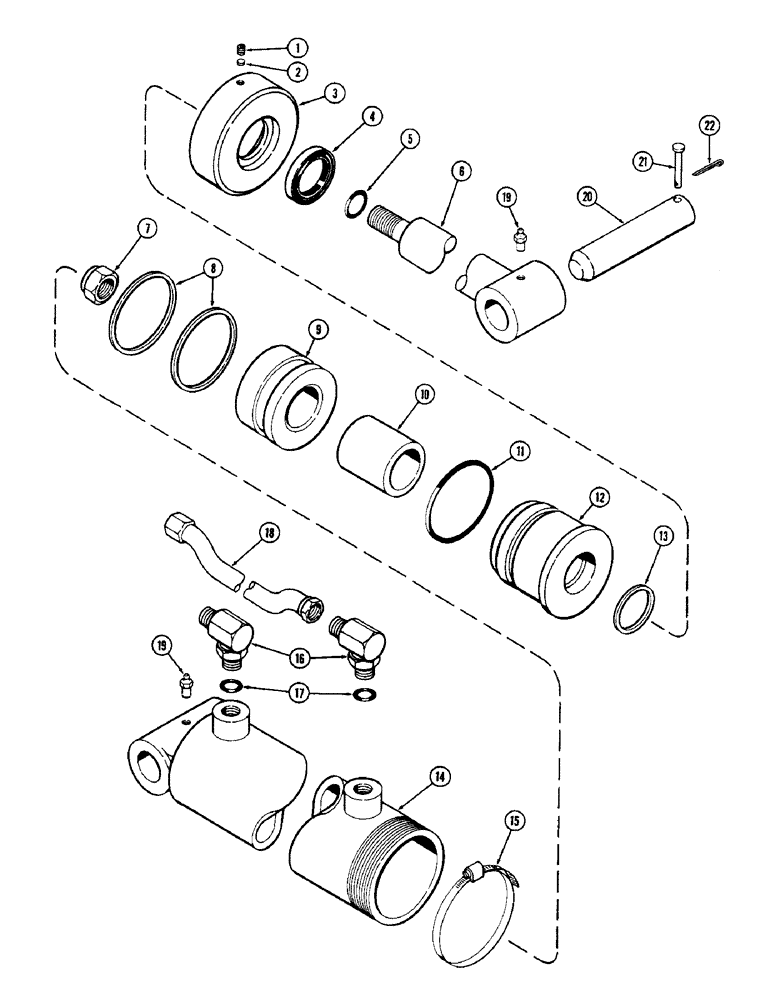

Запчасти Case IH 90 (12) - T57030 BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

T57030

CYLINDER

- bucket 3" (76.2 mm) complete, Includes: Ref. 1 - 14

2шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of seal kit T57034

1шт.

3

T55472

HEAD

CAP

1шт.

4

A41785

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit T57034

1шт.

5

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- 1 x 7/8 x 1/16" (25.4 x 22.2 x 1.6 mm)

1шт.

Part of seal kit T57034

1шт.

6

T57032

ROD ASSY.

ROD - cylinder

1шт.

7

B17305

NUT

- cylinder rod 1" NF

1шт.

8

T53173

CUP

SEAL - backup

2шт.

Part of seal kit T57034

1шт.

9

T57033

PISTON

- cylinder

1шт.

TWO GROOVES IN PISTON 1" HOLE

1шт.

The latest change or addition since the last issue.

1шт.

10

T55637

SPACER

- cylinder

1шт.

The latest change or addition since the last issue.

1шт.

11

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- 3 x 2-5/8 x 3/16" (76.2 x 66.7 x 4.8 mm)

1шт.

Part of seal kit T57034

1шт.

12

T53971

HEAD

- cylinder

1шт.

13

T53975

CUP

SEAL - backup

1шт.

Part of seal kit T57034

1шт.

14

T57031

TUBE,3" ID x 3.375" OD x 31.44" L

- cylinder

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - cylinder

2шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes: Ref. 17

4шт.

18

T55982

TUBE,0.625" OD x 19.187" L

- hydraulic

2шт.

19

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

20

T50016

PIN

- bucket 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

21

T50008

PIN

- clevis

2шт.

22

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

T57034

SEAL

- seal Includes: Ref. 2, 4, 5, 8, 11 and 13

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
