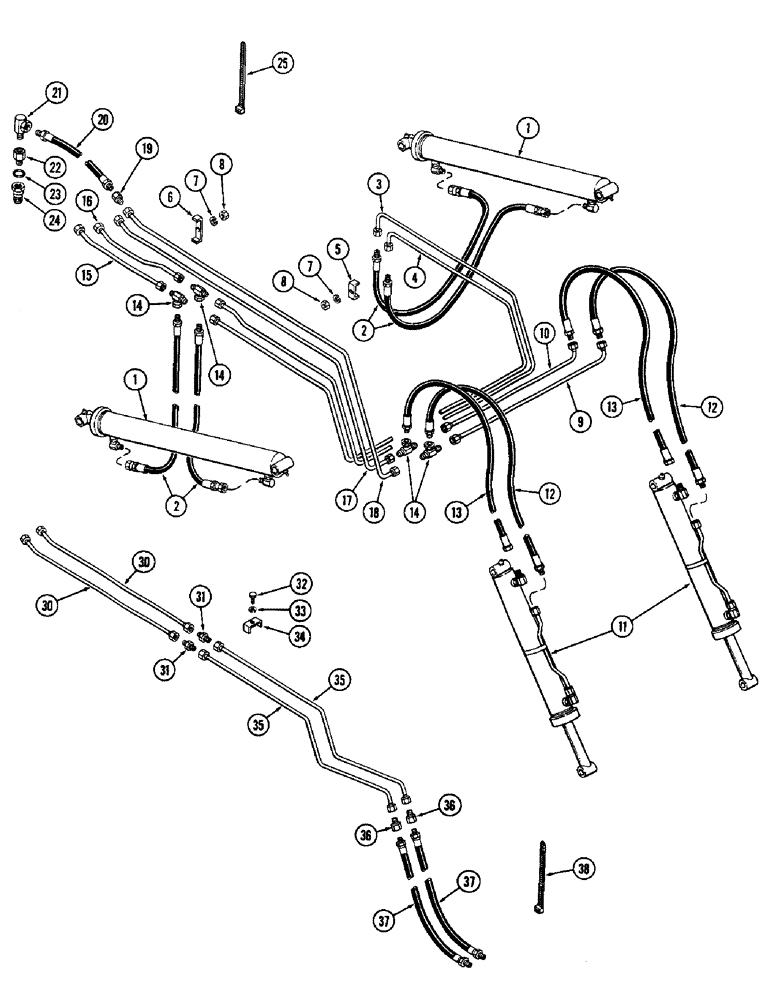

Запчасти Case IH 90 (10) - HYDRAULIC TUBES AND HOSE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

T57026

CYLINDER - lift (See Figure 14)

2шт.

2

L15317

HOSE ASSY.

HOSE - 1/2 x 32" (12.7 x 812.8 mm)

4шт.

3

T57020

TUBE - hydraulic 0.625" OD

1шт.

4

T57019

TUBE - hydraulic 0.625" OD

1шт.

5

T50064

CLAMP

- tube

1шт.

6

T53116

CLAMP

- tube

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

T55966

TUBE - hydraulic 0.625" OD x 35, 3" L

1шт.

10

T55967

TUBE,30.5, 3" L

- hydraulic

1шт.

11

T57030

CYLINDER

- bucket (See Figure 12)

2шт.

12

D33342

HYDRAULIC HOSE

HOSE - 1/2 x 29" (12.7 x 736.6 mm)

2шт.

13

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 1/2 x 26" (12.7 x 660.4 mm)

2шт.

14

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

FITTING - hydraulic tube

4шт.

15

T57017

TUBE - hydraulic 0.625" OD x 17.375, 3" L

1шт.

16

T57018

TUBE - hydraulic 0.625" OD x 16.25, 3" L

1шт.

17

T57021

TUBE,0.625" OD

- hydraulic

1шт.

18

T57022

TUBE,0.625" OD

- hydraulic

1шт.

19

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING - tube 7/8 to 1/2"

4шт.

20

T57055

HOSE - 1/2 x 204" (12.7 x 5181.6 mm)

4шт.

21

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2" x 90 degrees

4шт.

22

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 23

4шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.1 x 23.8 x 2.4 mm)

1шт.

24

A147889

COUPLING, BREAK AWAY

COUPLER - male (See Figure 38)

4шт.

25

T54520

STRAP

- nylon tie

4шт.

30

T57056

TUBE - hydraulic, third cylinder kit 0.625" OD x 33.375, 3" L

2шт.

31

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FITTING - union, third cylinder kit

2шт.

32

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3rd cylinder kit Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder kit 5/16"

3шт.

34

T50064

CLAMP

- tube, third cylinder kit

3шт.

35

T57057

TUBE - hydraulic, third cylinder kit 0.625" OD

2шт.

36

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING - tube 7/8 to 1/2", third cylinder kit

4шт.

37

T57059

HOSE

- 1/2 x 108" (12.7 x 2743.2mm), third cylinder kit

2шт.

38

T54520

STRAP

- nylon tie, third cylinder kit

3шт.
