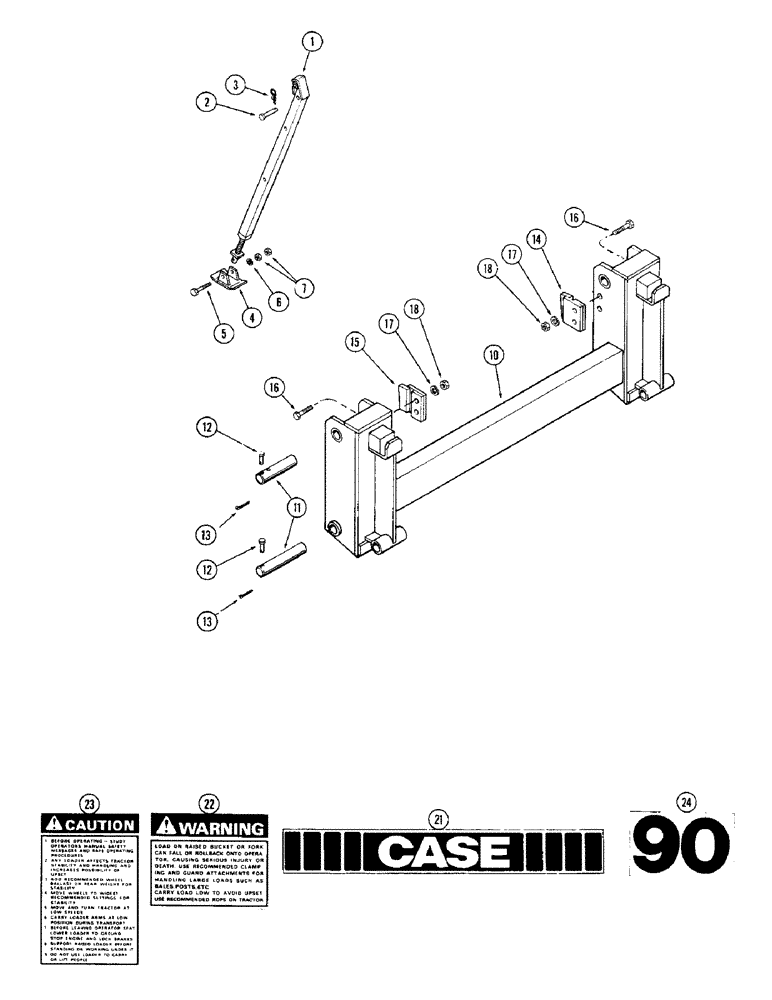

Запчасти Case IH 90 (40) - PARKING STAND (82) - FRONT LOADER & BUCKET

1

T57023

STAND - parking

2шт.

2

H120683

PIN,15.88mm OD x 94.06mm L

- clevis

4шт.

3

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER

4шт.

4

T54570

FOOT

SUPPORT - stand

2шт.

5

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

10

T88312

BRACKET ASSEMBLY - connecting (machinery item), Includes: Ref. 11 - 13

1шт.

11

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm), connecting bracket

4шт.

12

T50008

PIN

- clevis, connecting bracket

4шт.

13

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Connecting bracket 1/8" x 3/4"

4шт.

14

T57060

STOP

- LH roll back limit, connecting bracket

1шт.

15

T57061

STOP

- RH roll back limit, connecting bracket

1шт.

16

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Connecting bracket Hex, 1/2"-13 x 2", G5

4шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Connecting bracket 1/2"

4шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

Connecting bracket 1/2"-13, G5

4шт.

21

321-6334

DECAL

- Case

1шт.

22

321-6366

DECAL

- Warning

1шт.

23

321-6367

DECAL

- Safety

1шт.

24

321-6333

DECAL

- Model 90

2шт.

RED DECAL IS PART A181535

1шт.
