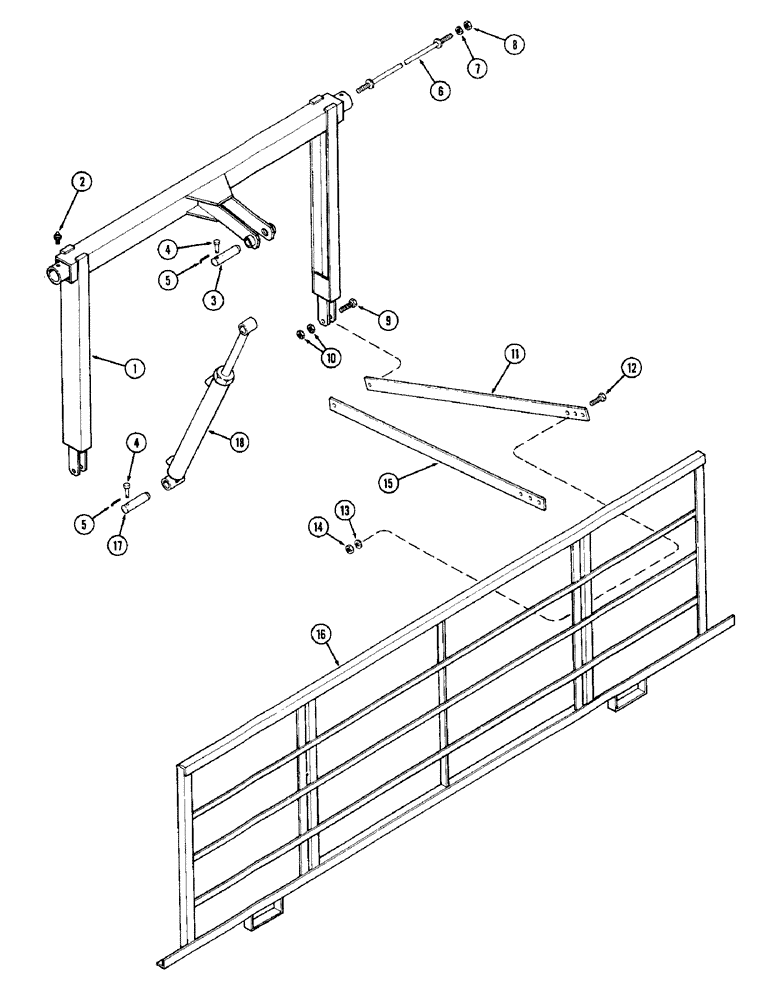

Запчасти Case IH 90 (22) - HAY STACKER, PUSH OFF ASSEMBLY (82) - FRONT LOADER & BUCKET

1

T53086

ARM - swing

1шт.

2

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

2шт.

3

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2" (28.6 x 114.3 mm)

1шт.

4

T50008

PIN

- clevis

2шт.

5

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

6

T53101

ROD

TIE ROD

1шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

129-107

NUT,5/8"-11, G5

2шт.

9

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

11

T53091

LINK - lower

2шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

13

192-2

WASHER - lock 3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

T53090

LINK - upper

2шт.

16

T53087

PUSH OFF

1шт.

17

T50086

PIN

- 1-1/8 x 5-5/8" (28.6 x 142.9 mm)

1шт.

18

T53098

CYLINDER

- hydraulic 2" (50.8 mm) (See Figure 30)

1шт.
