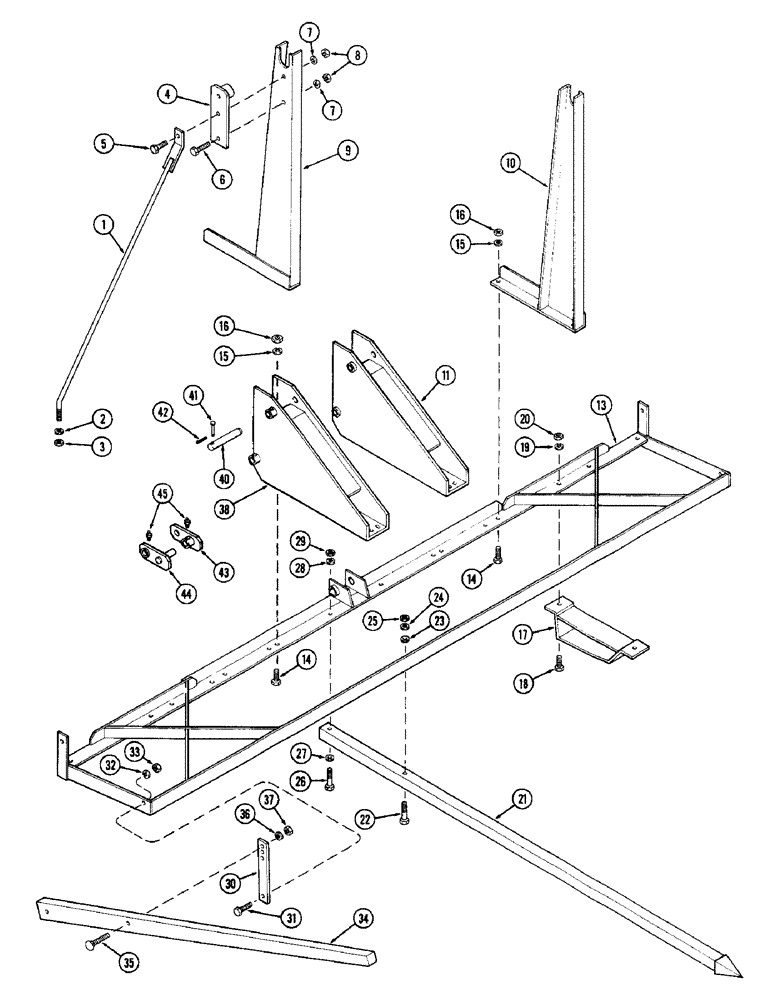

Запчасти Case IH 90 (20) - HAY STACKER, MAIN FRAME (82) - FRONT LOADER & BUCKET
№
Артикул
Название
Примечание
Количество
1
T53081
BRACE
2шт.
2
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
3
129-107
NUT,5/8"-11, G5
2шт.
4
T53082
BRACKET
- pivot arm
2шт.
5
113-604
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
6
113-607
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
2шт.
7
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
8
129-107
NUT,5/8"-11, G5
4шт.
9
T53080
SUPPORT - RH
1шт.
10
T53079
SUPPORT - LH
1шт.
11
T54521
BRACKET - LH
1шт.
13
T53088
FRAME - main
1шт.
14
113-604
BOLT,Hex, 5/8" - 11 x 2", Gr 5
8шт.
15
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
16
129-107
NUT,5/8"-11, G5
8шт.
17
T53089
SUPPORT
2шт.
18
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
19
192-2
WASHER - lock 3/8"
4шт.
20
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
21
T53094
TINE
12шт.
22
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
12шт.
23
195-104
WASHER,3/8"
- 1 x 7/16" x 14 gauge
12шт.
24
192-2
WASHER - lock 3/8"
12шт.
25
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
12шт.
26
113-203
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
12шт.
27
195-104
WASHER,3/8"
- 1 x 7/16" x 14 gauge
12шт.
28
192-2
WASHER - lock 3/8"
12шт.
29
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
12шт.
30
T53092
BRACKET - side tooth
2шт.
31
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
32
192-2
WASHER - lock 3/8"
2шт.
33
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
34
T53093
TOOTH - side
2шт.
35
111-349
CARRIAGE BOLT,Short NK, 3/8"-16 x 2 1/2", G2
BOLT - 3/8 x 2-1/2" NC carriage (Grade 2)
4шт.
36
192-2
WASHER - lock 3/8"
4шт.
37
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
38
T54522
BRACKET - RH
1шт.
40
T50016
PIN
- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)
2шт.
41
T50008
PIN
- clevis
2шт.
42
132-334
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), 1/8" x 3/4"
2шт.
43
T53866
LINK - bushing
2шт.
44
T53867
LINK - pin
2шт.
45
219-15
LUBE NIPPLE,5/16" NPTF
FITTING - grease 5/16" straight drive
4шт.
