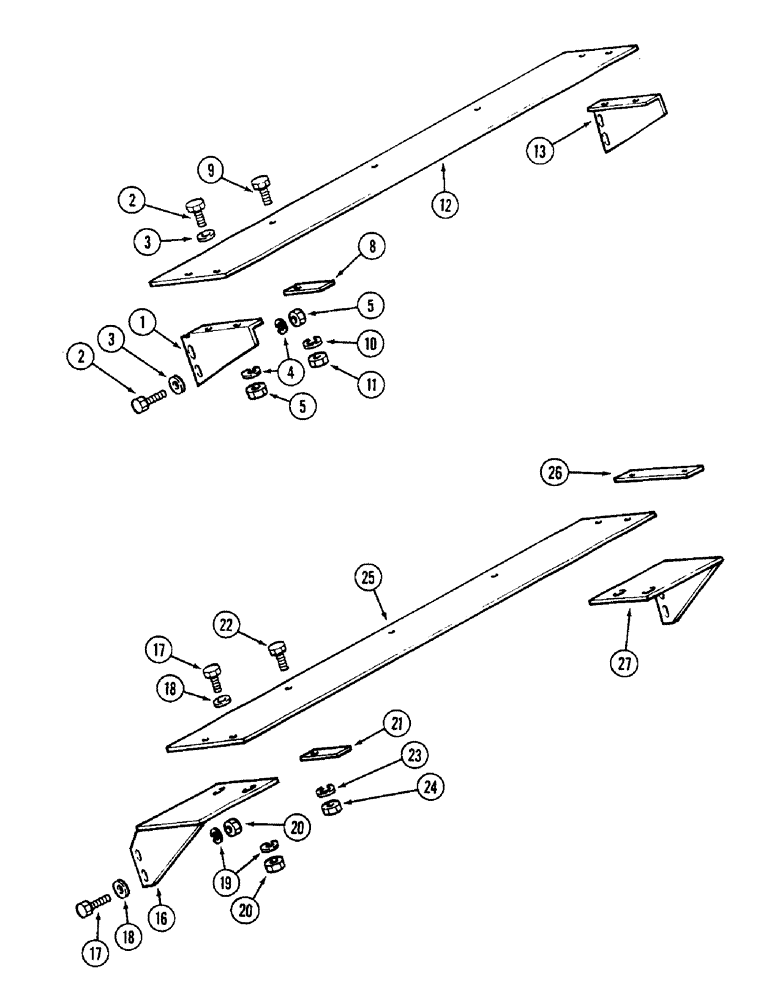

Запчасти Case IH 90 (19A) - GUARD PLATE, 72 INCH (1828.8 MM) BUCKET (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

3

195-104

WASHER,3/8"

- 1 x 7/16 x 5/64" (25.4 x 11.11 x 1.98 mm)

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

8

T50028

CLAMP - guard

5шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

12

T50029

PLATE

- guard

1шт.

13

T50026

PLATE - end LH

1шт.

1

T50027

ANGLE

PLATE - end RH, 83 inch (2108.2 MM) bucket

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

83 inch (2108.2 mm) bucket Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

3

195-104

WASHER,3/8"

- 1 x 7/16 x 5/64" (25.4 x 11.11 x 1.98 mm), 83 inch (2108.2 MM) bucket

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 83 inch (2108.2 MM) bucket 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 83 inch (2108.2 mm) bucket 3/8"-16, G5

8шт.

8

T50028

CLAMP, 83 inch (2108.2 MM) bucket

6шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

83 inch (2108.2 mm) bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 83 inch (2108.2 MM) bucket 3/8"

6шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 83 inch (2108.2 mm) bucket 3/8"-16, G5

6шт.

12

T50030

PLATE

- guard, 83 inch (2108.2 MM) bucket

1шт.

13

T50026

PLATE - end LH, 83 inch (2108.2 MM) bucket

1шт.

16

T57879

END

PLATE - end right, 96 inch (2438.4 MM) bucket

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

96 inch (2438.4 mm) bucket Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

18

195-104

WASHER,3/8"

- 1 x 7/16 x 5/64" (25.4 x 11.11 x 1.98 mm), 96 inch (2438.4 MM) bucket

8шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 96 inch (2438.4 MM) bucket 3/8"

8шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 96 inch (2438.4 mm) bucket 3/8"-16, G5

8шт.

21

T50028

CLAMP - plate, 96 inch (2438.4 MM) bucket

6шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

96 inch (2438.4 mm) bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 96 inch (2438.4 MM) bucket 3/8"

8шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 96 inch (2438.4 mm) bucket 3/8"-16, G5

8шт.

25

T50030

PLATE

- guard, 96 inch (2438.4 MM) bucket

1шт.

26

T57878

BAR

- mounting, 96 inch (2438.4 MM) bucket

2шт.

27

T57880

END

PLATE - end, left, 96 inch (2438.4 MM) bucket

1шт.
