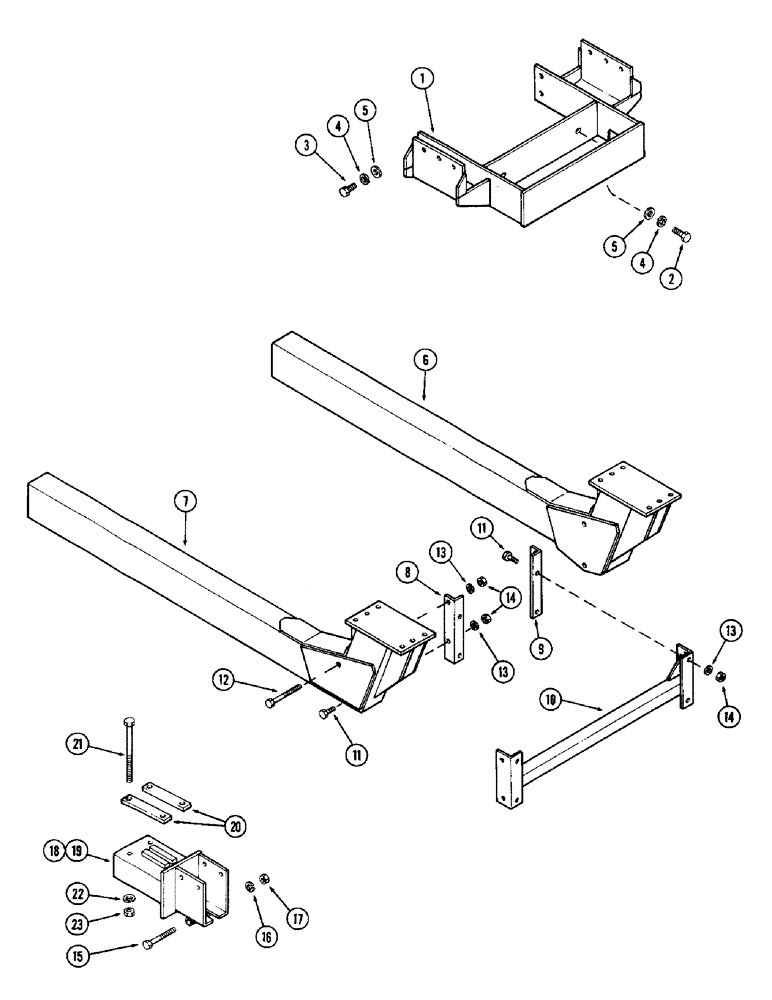

Запчасти Case IH 90 (09C) - MOUNTING BRACKETS, 1270 AND 1370 TRACTORS (82) - FRONT LOADER & BUCKET

1

T57597

BRACKET - front

1шт.

2

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

3

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

5

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

6шт.

6

T57053

SUPPORT - rear axle LH

1шт.

7

T57054

SUPPORT - rear axle RH

1шт.

8

T57068

ANGLE - cross brace

1шт.

9

T57067

ANGLE - cross brace

1шт.

10

T57047

BRACE - cross

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

12

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

15

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

17

129-107

NUT,5/8"-11, G5

6шт.

18

T57049

BRACKET - mounting LH

1шт.

19

T57050

BRACKET - mounting RH

1шт.

20

T57592

STRAP - rear axle

4шт.

21

113-679

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- 5/8 x 9" NC hex (Grade 5)

8шт.

22

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

23

129-107

NUT,5/8"-11, G5

8шт.
