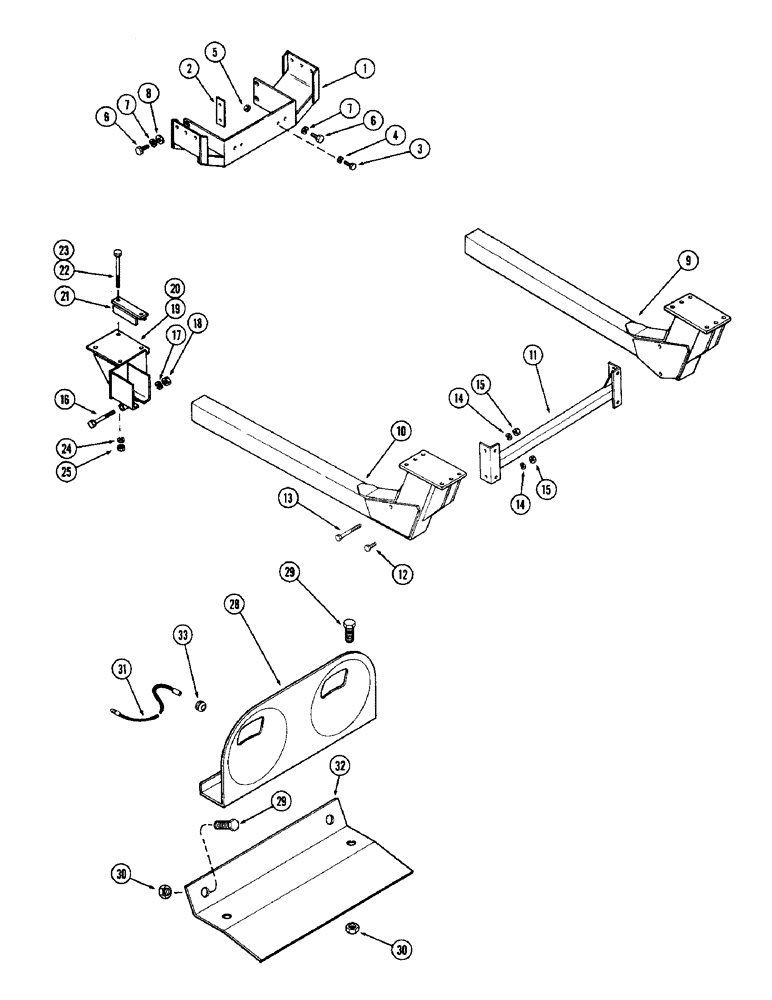

Запчасти Case IH 90 (09A) - MOUNTING BRACKETS, 970, 1070, 1170 AND 1175 TRACTORS (82) - FRONT LOADER & BUCKET

1

T57598

BRACKET

- front

1шт.

2

T57595

BAR - spacer

4шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

129-107

NUT,5/8"-11, G5

2шт.

6

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

8

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

4шт.

9

T57045

SUPPORT - rear axle LH

1шт.

10

T57046

SUPPORT - rear axle RH

1шт.

11

T57047

BRACE - cross

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

16

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

18

129-107

NUT,5/8"-11, G5

6шт.

19

T57593

BRACKET

- mounting LH

1шт.

20

T57594

BRACKET

- mounting RH

1шт.

21

T57596

STRAP - rear axle

4шт.

22

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8 x 8" NC hex (Grade 5) 970 and 1070 tractors

8шт.

22

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8 x 8" NC hex (Grade 5) 1170 and 1175 tractors

4шт.

23

113-680

BOLT,Hex, 5/8" - 11 x 10", Gr 5

- 5/8 x 10" NC hex (Grade 5) 1170 and 1175 tractors

4шт.

24

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

129-107

NUT,5/8"-11, G5

8шт.

28

F63176

BRACKET

- lamp, head 970, 1070, 1170, 1175, 1270 and 1370 tractors with cab

2шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Head lamp brackets 970, 1070, 1170, 1175, 1270 and 1370 tractors with cab Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Head lamp brackets 970, 1070, 1170, 1175, 1270 and 1370 tractors with cab 3/8"-16, G5

8шт.

31

T53989

WIRE ASSEMBLY, head lamp brackets 970, 1070, 1170, 1175, 1270 and 1370 tractors with cab

4шт.

32

T53988

SUPPORT - lamp bracket, head 970, 1070, 1170, 1175, 1270 and 1370 tractors with cab

2шт.

33

A31076

GROMMET

- split, head lamp brackets 970, 1070, 1170, 1175, 1270 and 1370 tractors with cab

2шт.
