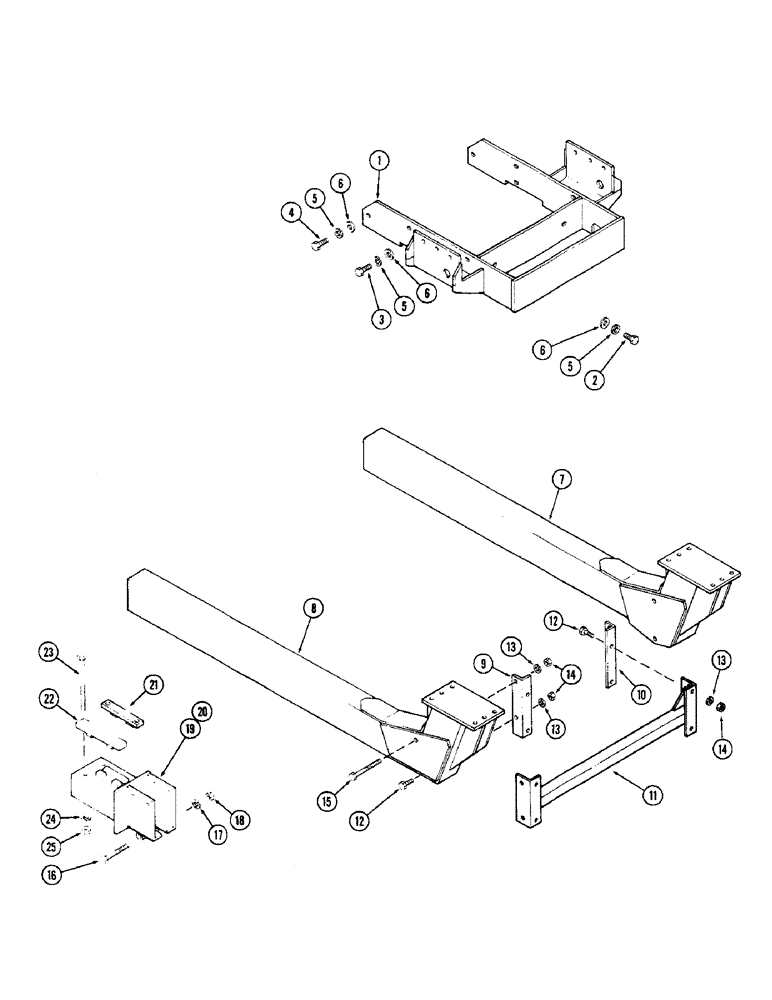

Запчасти Case IH 90 (08) - MOUNTING BRACKETS, 2390 AND 2590 TRACTORS (82) - FRONT LOADER & BUCKET

1

T57048

BRACKET - front

1шт.

2

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

3

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

4

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5)

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

6

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

12шт.

7

T57053

SUPPORT - rear axle LH

1шт.

8

T57054

SUPPORT - rear axle RH

1шт.

9

T57068

ANGLE - cross brace

1шт.

10

T57067

ANGLE - cross brace

1шт.

11

T57047

BRACE - cross

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

15

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

16

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

18

129-107

NUT,5/8"-11, G5

6шт.

19

T57049

BRACKET - mounting LH

1шт.

20

T57050

BRACKET - mounting RH

1шт.

21

T57052

STRAP - rear axle inside

2шт.

22

T57051

STRAP - rear axle outside

2шт.

23

113-2603

BOLT - 5/8 x 10-1/2" NC hex (Grade 5)

8шт.

24

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

129-107

NUT,5/8"-11, G5

8шт.
