Запчасти Case IH 90 (07A) - MOUNTING BRACKETS ADAPTING KIT, 2090 AND 2290 MFD TRACTORS (82) - FRONT LOADER & BUCKET

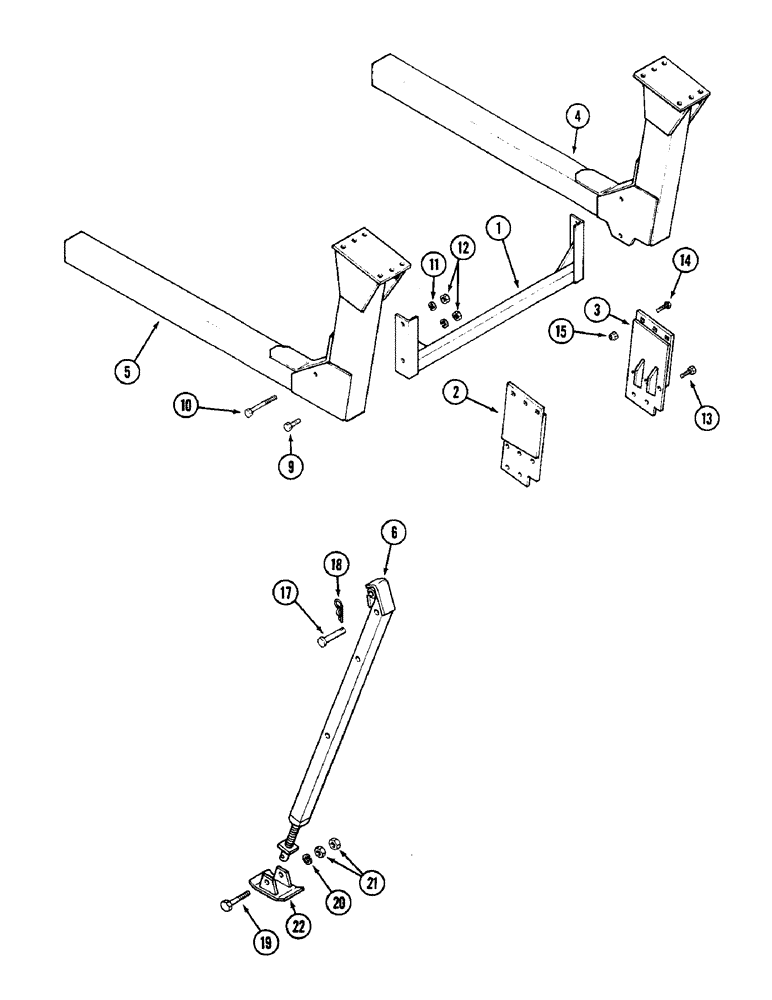

Схема запчастей Case IH 90 - (07A) - MOUNTING BRACKETS ADAPTING KIT, 2090 AND 2290 MFD TRACTORS (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T57867

CROSSBAR

BRACE ASSEMBLY - cross

1шт.

The latest change or addition since the last issue.

1шт.

2

T57870

BRACKET

- left front

1шт.

The latest change or addition since the last issue.

1шт.

3

T57871

BRACKET

- right front

1шт.

The latest change or addition since the last issue.

1шт.

4

T57868

SUPPORT

- left rear

1шт.

The latest change or addition since the last issue.

1шт.

5

T57869

SUPPORT

- right rear

1шт.

The latest change or addition since the last issue.

1шт.

6

T57872

STAND - parking

2шт.

The latest change or addition since the last issue.

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

The latest change or addition since the last issue.

1шт.

10

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

The latest change or addition since the last issue.

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

The latest change or addition since the last issue.

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

The latest change or addition since the last issue.

1шт.

13

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

The latest change or addition since the last issue.

1шт.

14

111-635

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 1/2", G5

BOLT - 5/8 x 1-1/2" NC round head square neck

6шт.

The latest change or addition since the last issue.

1шт.

15

131-460

LOCK NUT,5/8"-11

NUT - 5/8" NC hex lock

16шт.

The latest change or addition since the last issue.

1шт.

17

H120683

PIN,15.88mm OD x 94.06mm L

- clevis

4шт.

The latest change or addition since the last issue.

1шт.

18

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - retaining

4шт.

The latest change or addition since the last issue.

1шт.

19

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

The latest change or addition since the last issue.

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

The latest change or addition since the last issue.

1шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

The latest change or addition since the last issue.

1шт.

22

T54570

FOOT

SUPPORT - stand

2шт.

The latest change or addition since the last issue.

1шт.

Выбрано товаров: 38
