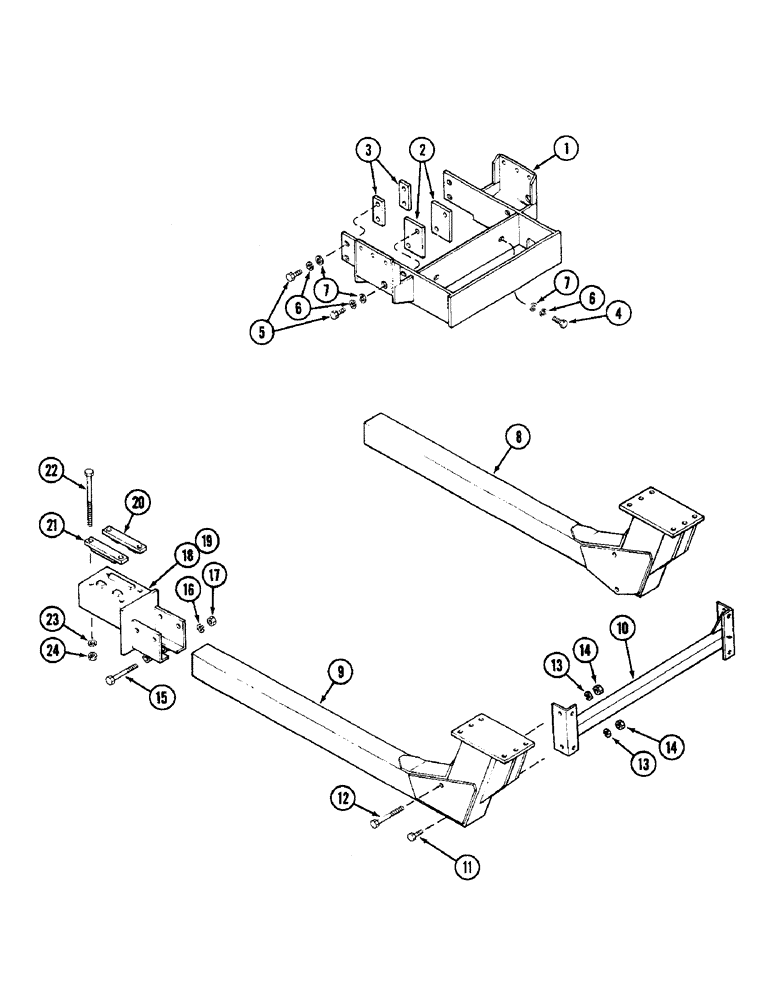

Запчасти Case IH 90 (06) - MOUNTING BRACKETS, 2090 AND 2290 TRACTORS (82) - FRONT LOADER & BUCKET

1

T57038

BRACKET - front

1шт.

2

T57044

SPACER - bracket (Used without tractor side rail)

2шт.

3

T57043

SPACER - bracket (Used without tractor side rail)

2шт.

4

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

5

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

7

195-109

WASHER,3/4"

- 2 x 13/16 x 5/32" (50.8 x 20.64 x 3.97 mm)

10шт.

The latest change or addition since the last issue.

1шт.

8

T57045

SUPPORT - rear axle LH

1шт.

9

T57046

SUPPORT - rear axle RH

1шт.

10

T57047

BRACE - cross

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

15

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

17

129-107

NUT,5/8"-11, G5

6шт.

18

T57039

BRACKET - mounting LH

1шт.

19

T57040

BRACKET - mounting RH

1шт.

20

T57042

STRAP - rear axle inside

2шт.

21

T57041

STRAP - rear axle outside

2шт.

22

113-680

BOLT,Hex, 5/8" - 11 x 10", Gr 5

- 5/8 x 10" NC hex (Grade 5)

8шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

24

129-107

NUT,5/8"-11, G5

8шт.
