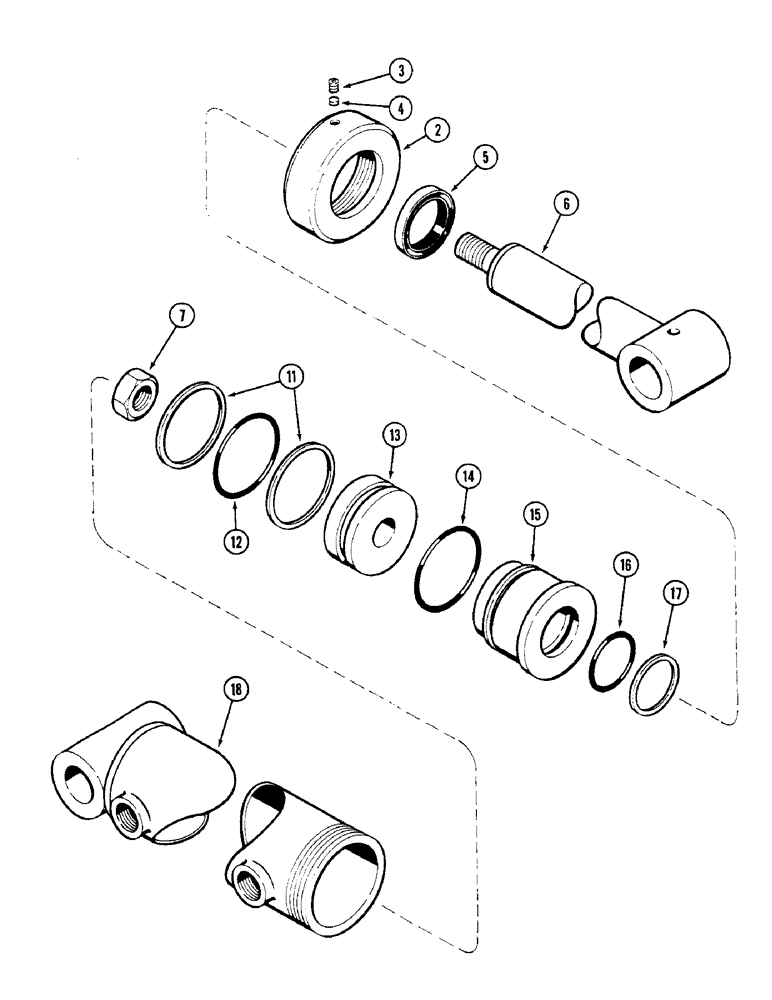

Запчасти Case IH 90 (35A) - T57744 CYLINDER (35) - HYDRAULIC SYSTEMS

T57744

CYLINDER

ASSEMBLY - hydraulic, 2-1/2 x 9", Includes: Ref. 2 - 18

1шт.

The latest change or addition since the last issue.

1шт.

2

T50089

CAP

HEAD CAP - cylinder (Order T57599)

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" socket head set

1шт.

4

T55068

PLUG

- nylon

1шт.

Part of seal kit T51786

1шт.

5

A41785

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit T51786

1шт.

6

T57745

ROD

- piston

1шт.

7

131-909

LOCK NUT,3/4"-16

NUT - piston rod, 3/4" NF

1шт.

11

B17297

SPECIAL WASHER

SEAL - backup

2шт.

Part of seal kit T51786

1шт.

12

T55074

SEAL

O-RING - 2-1/8 x 2-1/2 x 3/16" (53.97 x 63.5 x 4.76 mm)

1шт.

Part of seal kit T51786

1шт.

13

B17273

PISTON

- cylinder

1шт.

14

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 2-1/4 x 2-1/2 x 1/8" (57.15 x 63.5 x 3.17 mm)

1шт.

Part of seal kit T51786

1шт.

15

T50088

HEAD

- cylinder

1шт.

16

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.17 mm)

1шт.

Part of seal kit T51786

1шт.

17

B17326

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit T51786

1шт.

The latest change or addition since the last issue.

1шт.

18

T57746

TUBE

- cylinder

1шт.

T51786

SEAL KIT

KIT - seal repair, Includes: Ref. 4, 5, 11, 12, 14, 16 and 17

1шт.

The latest change or addition since the last issue.

1шт.
