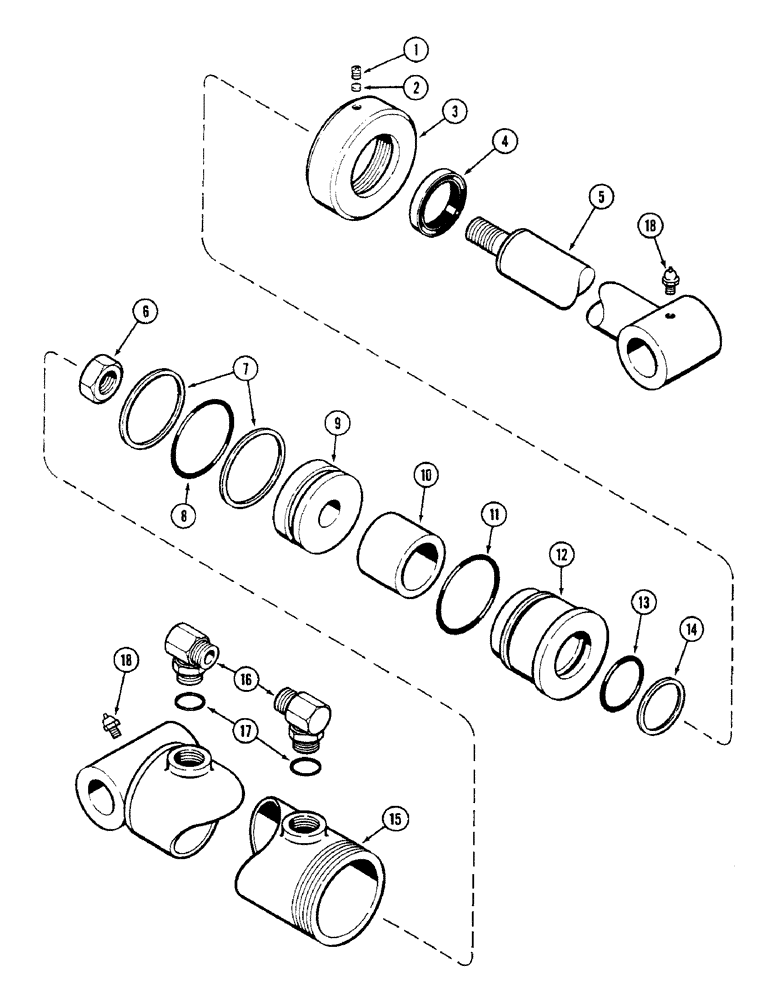

Запчасти Case IH 90 (15A) - T57777 LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

T57777

CYLINDER

- lift 3" (76.2 mm) complete

2шт.

The latest change or addition since the last issue.

1шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of seal kit T57781

1шт.

3

T57772

CAP

HEAD CAP

1шт.

4

B17292

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit T57781

1шт.

5

T57779

ROD - cylinder

1шт.

6

131-909

LOCK NUT,3/4"-16

NUT - cylinder rod 3/4" NF

1шт.

7

B17193

SEALING WASHER

- backup

2шт.

Part of seal kit T57781

1шт.

8

B17304

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

Part of seal kit T57781

1шт.

9

B17274

PISTON

1шт.

10

T53979

SPACER

1шт.

11

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- 3 x 2-5/8 x 3/16" (76.2 x 66.7 x 4.8 mm)

1шт.

Part of seal kit T57781

1шт.

12

T57780

HEAD

- cylinder

1шт.

13

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- 2-3/8 x 2 x 3/16" (60.3 x 50.8 x 4.8 mm)

1шт.

Part of seal kit T57781

1шт.

14

B17299

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit T57781

1шт.

15

T57778

CYLINDER

TUBE - cylinder

1шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY

4шт.

The latest change or addition since the last issue.

1шт.

18

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

The latest change or addition since the last issue.

1шт.

T57781

SEAL

SEAL - Includes: Ref.2, 4, 7, 8, 11, 13 and 14

1шт.

The latest change or addition since the last issue.

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
