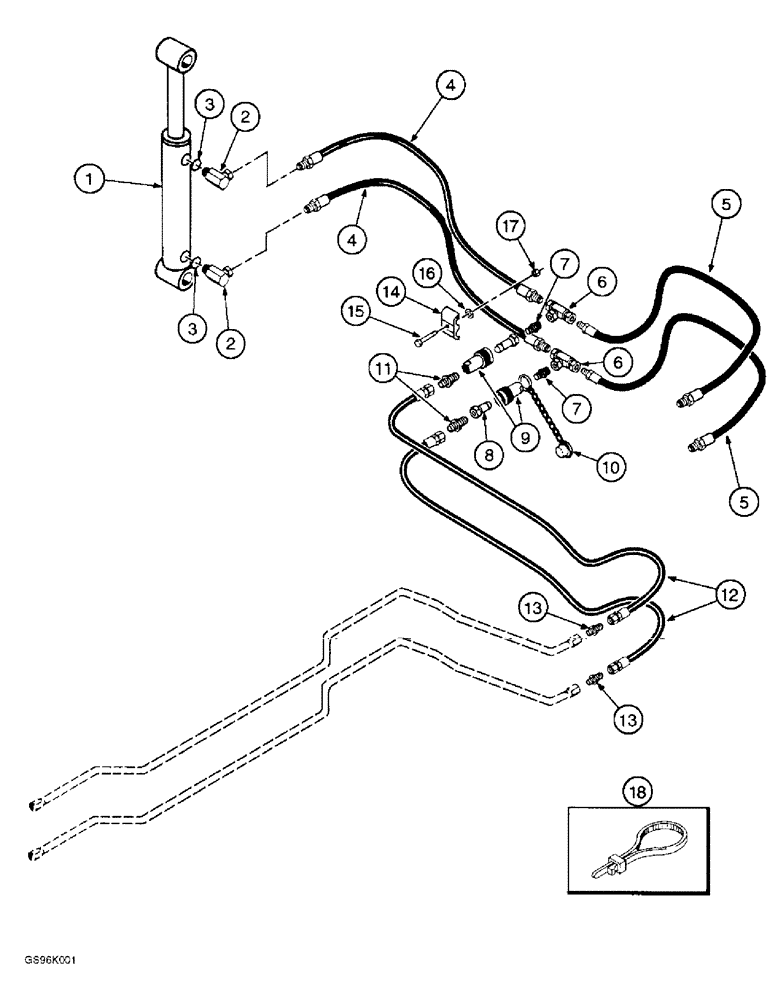

Запчасти Case IH 890 (8-04) - GRAPPLE HYDRAULICS (08) - HYDRAULICS

1

T57744

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 222 mm (8-3/4 inch) stroke, grapple, parts list figure 8-36

2шт.

2

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 90 degree, 3/4-16 adj O-ring x 1/2 inch swivel str thread

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

4шт.

4

105013A1

HOSE ASSY.

HOSE - 927 mm (36-1/2 inch) long

2шт.

5

105014A1

HOSE ASSY.

HOSE - 1054 mm (41-1/2 inch) long

2шт.

6

218-1602

UNION

TEE - 1/2 inch female PT

2шт.

7

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - hex, 1/2 PT x 1-7/8 inch

2шт.

8

H49726

PUSH-PULL COUPLING

COUPLER - self sealing, male

2шт.

9

H436396

COUPLING

COUPLER - self sealing, female

2шт.

10

1954133C1

PLUG

PLUG - coupling, dust

2шт.

11

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

2шт.

12

250641A1

HOSE

- 1930 mm (76 inch) long

2шт.

13

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

14

1985061C1

INSERT

CLAMP - plastic

2шт.

15

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

3шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

6шт.
