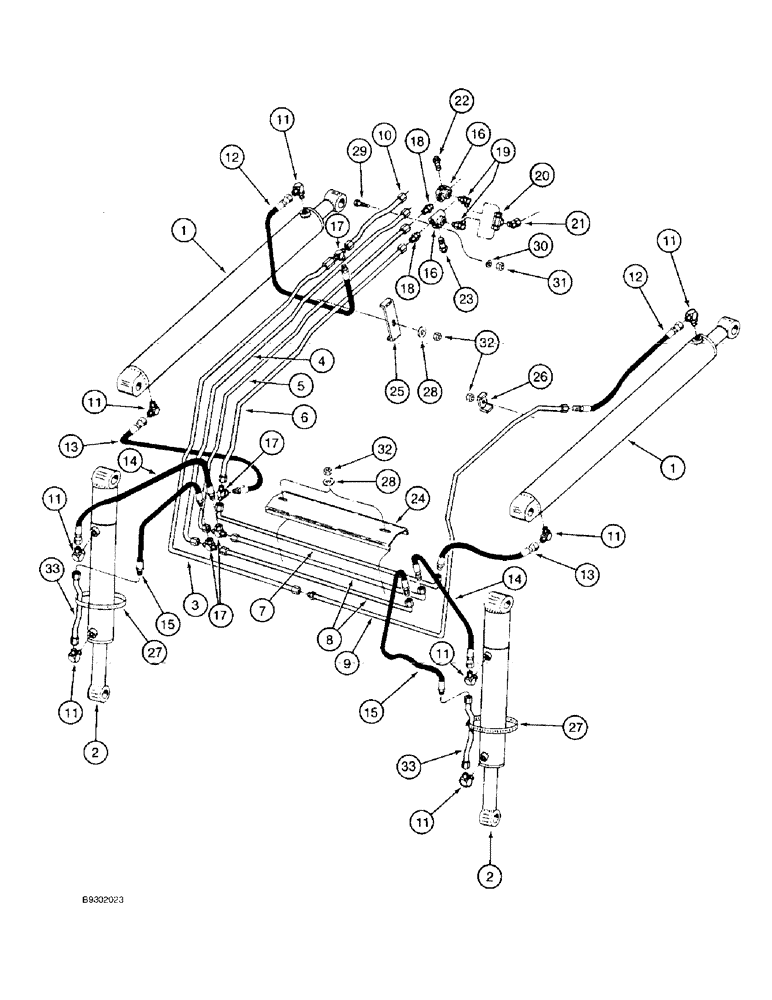

Запчасти Case IH 890 (8-02) - HYDRAULIC TUBES AND HOSES (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - lift, 3-1/4 inch, parts list figure 8-32

2шт.

2

REF

INSTRUCTION

CYLINDER - attachment, 3 inch, parts list figure 8-34

2шт.

3

1978816C1

HYD TUBE,5" OD

TUBE - hydraulic

1шт.

4

1978817C1

HYD TUBE

TUBE - hydraulic

1шт.

5

1978818C1

HYD TUBE,5" OD

TUBE - hydraulic

1шт.

6

1978819C1

HYD TUBE

TUBE - hydraulic

1шт.

7

1978820C1

HYD TUBE

TUBE - hydraulic

1шт.

8

1978821C1

HYD TUBE,5" OD

TUBE - hydraulic

2шт.

9

1978822C1

HYD TUBE

TUBE - hydraulic

1шт.

10

1978815C1

HYD TUBE

TUBE - hydraulic

1шт.

11

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss

8шт.

12

1978842C1

HOSE ASSY.

HOSE - 736 mm (29 inch) long

2шт.

13

1978843C1

HOSE ASSY.

HOSE - 454 mm (17-7/8 inch) long

2шт.

14

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 660 mm (26 inch) long

2шт.

15

1978845C1

HOSE ASSY.

HOSE - 723 mm (28-1/2 inch) long

2шт.

16

1978825C1

BODY

- circuit relief

2шт.

17

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- 7/8-14 inch swivel branch x flare x flare

4шт.

18

218-5356

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 1-3/16-12 flare x 1-1/16-12 inch O-ring boss, O-ring-7/8 inch JIC

2шт.

19

218-5313

FITTING

ELBOW - 90 degree, 3/4-16 adj O-ring boss x 1/2 inch PT, adjustable

2шт.

20

218-1602

UNION

TEE - 1/2 inch female PT

1шт.

21

T57942

FITTING

- 45 degree

1шт.

22

1978827C1

VALVE, PRESSURE RELI

RELIEF VALVE - 2700 PSI

1шт.

23

1978826C1

VALVE, PRESSURE RELI

RELIEF VALVE - 3200 PSI

1шт.

24

1978824C1

COVER

- tube

1шт.

25

1978823C1

CLAMP

- tube

3шт.

26

T58152

CLAMP

- tube

2шт.

27

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia, Includes screw, type F

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

29

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

32

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

7шт.

33

T55982

TUBE,0.625" OD x 19.187" L

- hydraulic

2шт.
