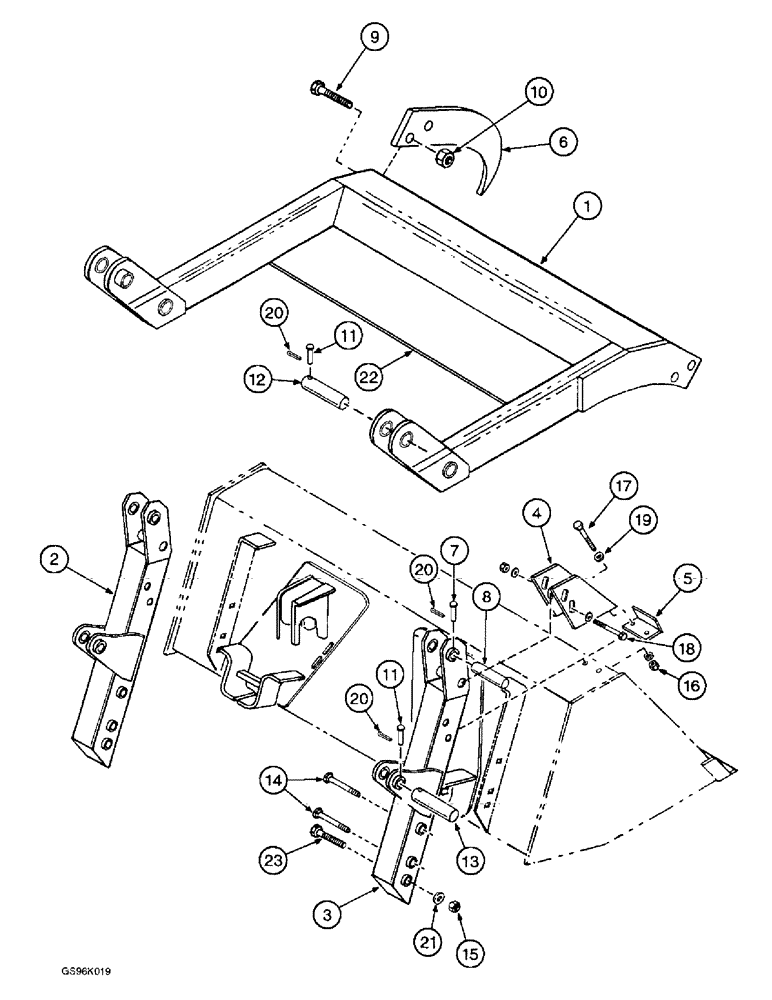

Запчасти Case IH 890 (9-14) - GRAPPLE, FOUR TINE, ROUND BALE AND SILAGE (09) - CHASSIS/ATTACHMENTS

1

105122A1

FRAME ASSY

ARM - swing

1шт.

2

1985071C1

PEDESTAL

- left-hand

1шт.

3

1985070C1

PEDESTAL

- right-hand

1шт.

4

105012A2

BRACKET

SUPPORT - grapple

2шт.

5

1985064C1

ANGLE

BRACKET - support

2шт.

6

105121A1

TEETH

TINE - grapple

4шт.

7

427-6225

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch, hardened

2шт.

8

T58133

HEADLESS PIN,33.34mm OD x 170mm L

PIN - 1-5/16 x 6-5/8 inch

2шт.

9

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

10

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

8шт.

11

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

12

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2 inch

2шт.

13

1344768C1

HEADLESS PIN,28.57mm OD x 168mm L

PIN - 1-1/8 x 6-1/2 inch

2шт.

14

433-1088

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

BOLT - carriage, 5/8 NC x 5-1/2 inch

4шт.

15

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

6шт.

16

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

8шт.

17

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, plated

4шт.

18

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

4шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

16шт.

20

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

6шт.

21

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch

6шт.

22

105015A2

CABLE

- support, 68 inches

1шт.

23

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.
