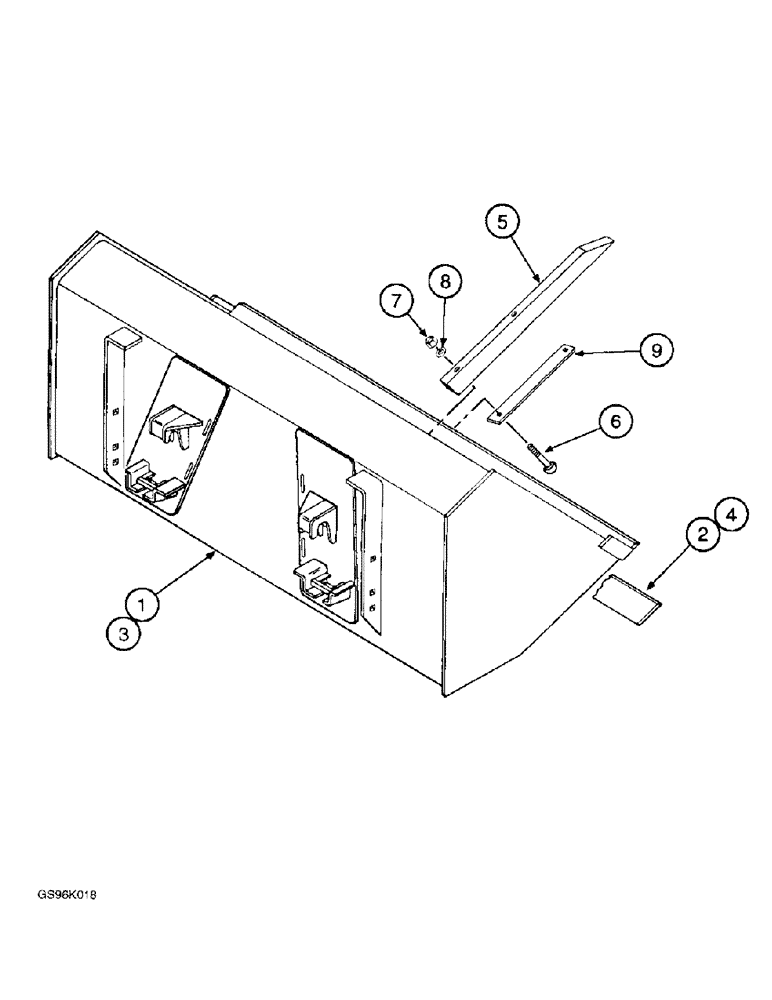

Запчасти Case IH 890 (9-12) - MATERIAL BUCKETS, QUICK ATTACH TYPE (09) - CHASSIS/ATTACHMENTS

1

105016A1

BUCKET ASSEMBLY - drilled for tines, replaceable edge, 96 inch, order from Machinery Price List

1шт.

2

1540351C1

EDGE, CUTTING

EDGE - cutting, 3/4 x 4 x 97-1/2 inch

1шт.

3

105017A1

BUCKET ASSEMBLY - replaceable edge, 108 inch, order from Machinery Price List

1шт.

4

105018A1

BLADE

EDGE - replaceable, 3/4 x 4 x 109-1/2 inch, for 108 inch bucket

1шт.

112852A1

PACKAGE - manure tines (Package of 10 tines), order from Machinery Price LIst (96 inch bucket only)

1шт.

5

T51043

TINE

- bucket

10шт.

6

419-3648

PLOW BOLT,#3, 3/8" - 16 x 3", Gr 5

BOLT - plow, 3/8 NC x 3 inch

20шт.

7

425-106

NUT,3/8"-16, Cl 5

20шт.

8

492-11038

LOCK WASHER,3/8"

20шт.

9

1540357C1

BAR

- doubler

10шт.
