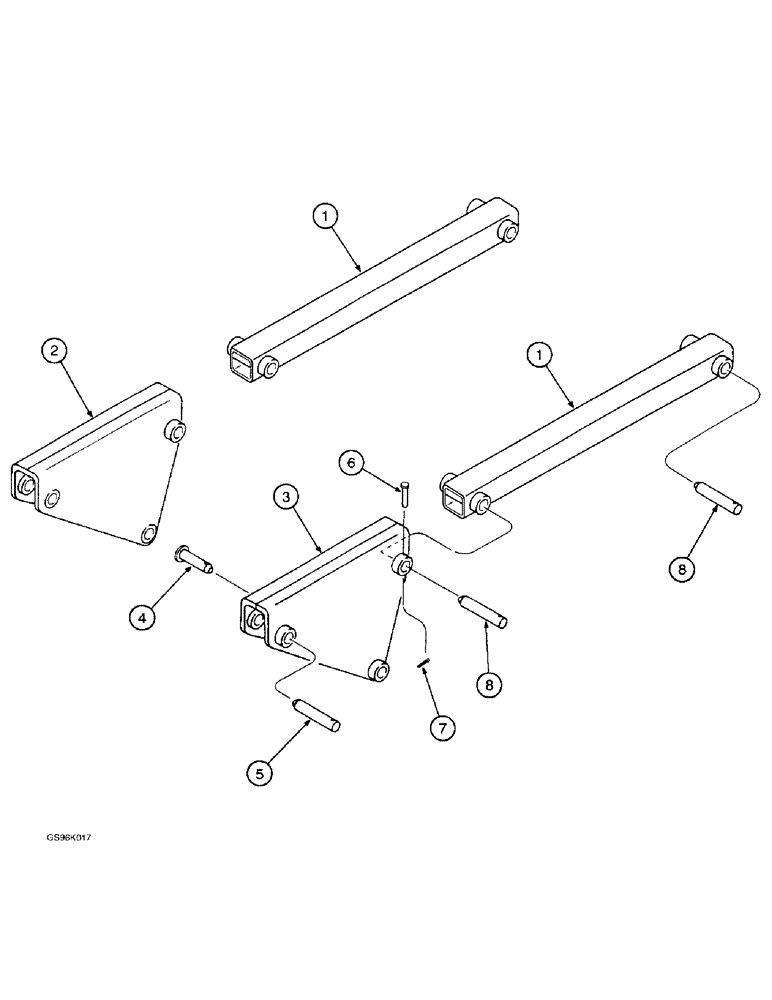

Запчасти Case IH 890 (9-10) - SELF-LEVEL LINKAGE (09) - CHASSIS/ATTACHMENTS

1

1978804C1

LINK

- level

2шт.

2

1978803C1

ASSEMBLY

LINK - self-level, right-hand

1шт.

3

1978802C1

ASSEMBLY

LINK - self-level, left-hand

1шт.

4

1978806C1

PIN ASSY.

PIN - 1-5/16 x 6-5/8 inch

2шт.

5

1978810C1

PIN

- 1-5/16 x 7-1/8 inch

2шт.

6

427-6225

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch, hardened

8шт.

7

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

8шт.

8

105111A1

PIN,33.34mm OD x 180.97mm L

- 1-5/16 x 7-1/4 inch

4шт.

Pin 105111A1 requires a 1/4 - 28 Zerk fitting, P/N 219-87

1шт.
