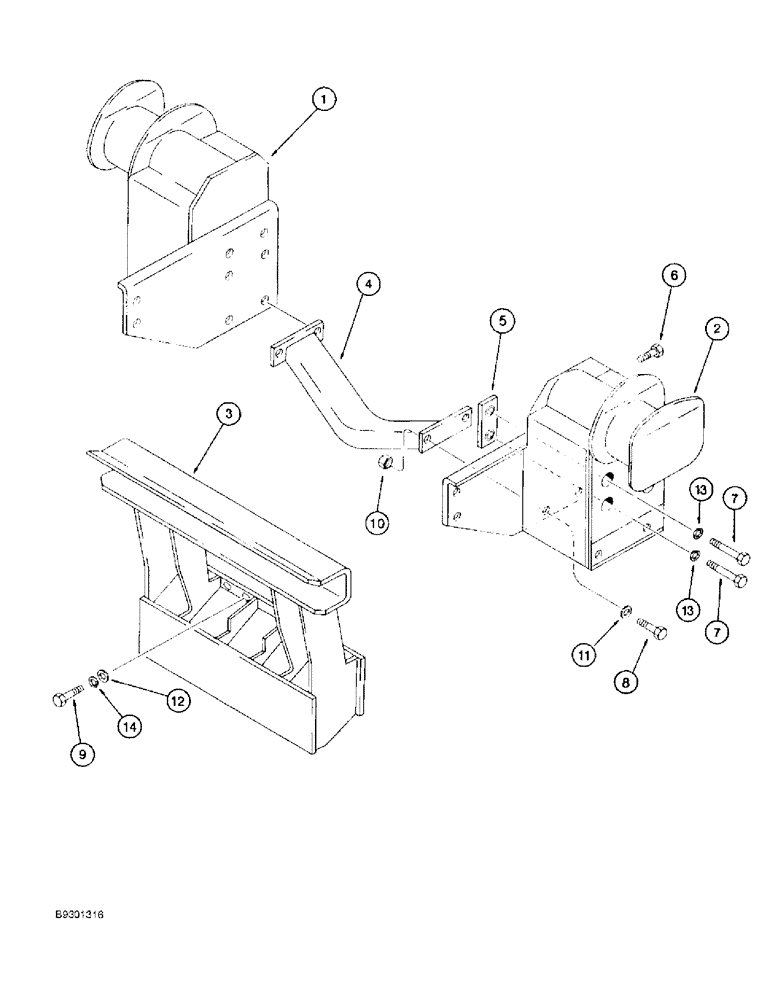

Запчасти Case IH 890 (9-06) - MOUNTING BRACKET KIT, 7100/7200 SERIES TRACTORS (09) - CHASSIS/ATTACHMENTS

81893C1

MOUNTING KIT - 7100/7200 series tractor (Machinery Item)

1шт.

1

1978793C1

BRACKET

- right hand, center

1шт.

2

1978792C1

BRACKET

- left hand, center

1шт.

3

1978796C2

BRACKET

- front

1шт.

4

1978791C1

CROSSBAR

BRACE - cross

1шт.

5

1978799C1

NUT ASSY.

PLATE - nut

6шт.

6

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

12шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

9

814-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8

- hex, 20 - 2.5 x 65 mm

6шт.

10

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

11

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

12

495-11081

WASHER,3/4", SAE

6шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

14

492-11088

LOCK WASHER,7/8"

7/8"

6шт.
