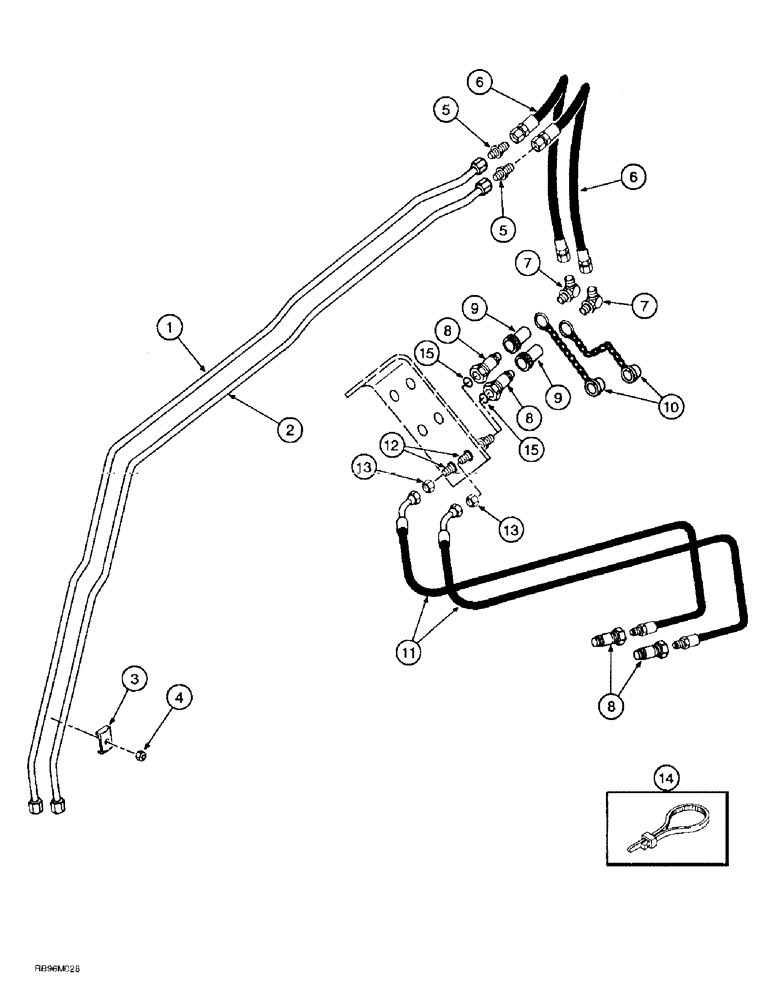

Запчасти Case IH 890 (8-40) - MID MOUNT THIRD FUNCTION KIT (08) - HYDRAULICS

252989A1

MID MOUNT HOSE KIT - 3rd function (Machinery Item)

1шт.

1

1978851C1

HYD TUBE,5" OD

TUBE - hydraulic

1шт.

2

1978852C1

HYD TUBE,5" OD

TUBE - hydraulic

1шт.

3

T50064

CLAMP

- tube

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

6

250641A1

HOSE

- 1930 mm (76 inch) long

2шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

2шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

4шт.

9

1272400C1

COUPLING

COUPLER - self sealing, female

2шт.

10

1954133C1

PLUG

PLUG - coupling, dust

2шт.

11

250643A1

HOSE

- 3454 mm (136 inch) long

2шт.

12

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

1985078C2

SET OF PARTS

KIT - coupler tag (color coded)

1шт.
