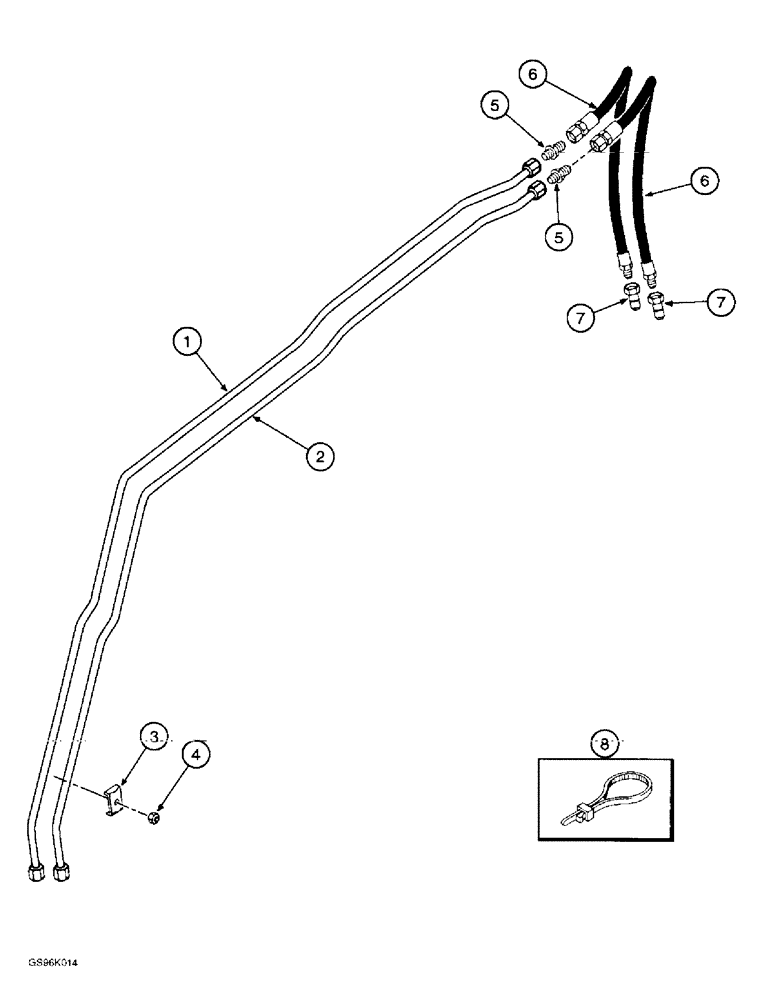

Запчасти Case IH 890 (8-38) - REAR MOUNT THIRD FUNCTION KIT (08) - HYDRAULICS

253522A1

REAR MOUNT HOSE KIT - 3rd function (Machinery Item)

1шт.

1

1978851C1

HYD TUBE,5" OD

TUBE - hydraulic

1шт.

2

1978852C1

HYD TUBE,5" OD

TUBE - hydraulic

1шт.

3

T50064

CLAMP

- tube

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

6

253229A1

HOSE

- 5080 mm (200 inch) long

2шт.

7

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

2шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.

1985078C2

SET OF PARTS

KIT - coupler tag (color coded)

1шт.
