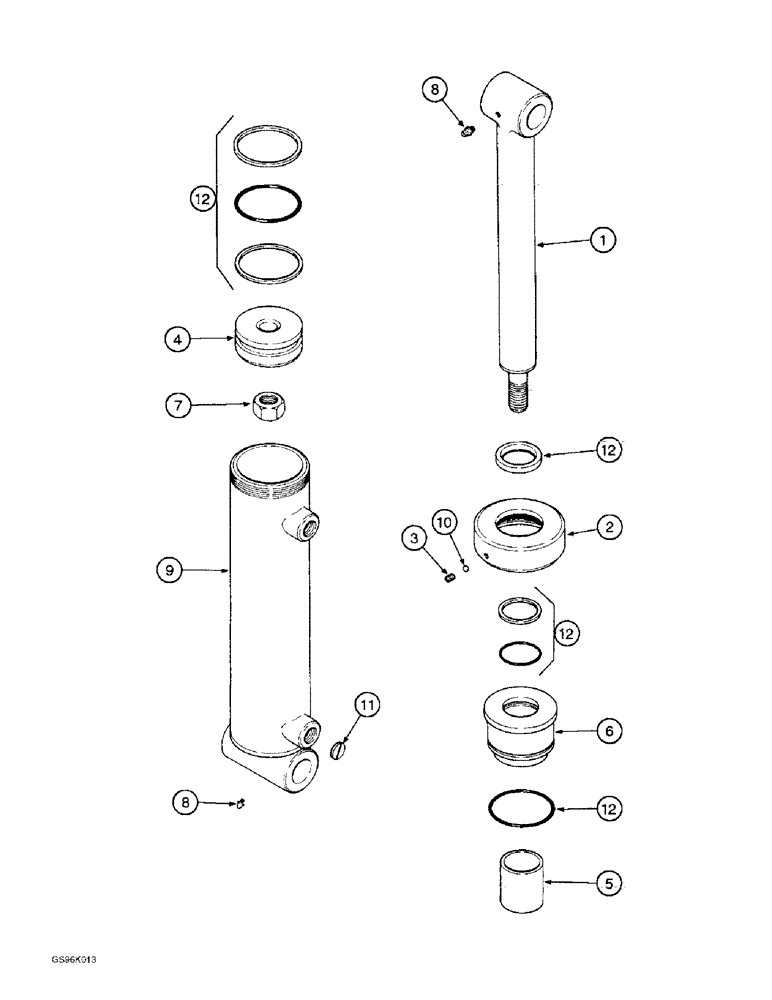

Запчасти Case IH 890 (8-36) - GRAPPLE CYLINDER (08) - HYDRAULICS

T57744

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 222 mm (8-3/4 inch) stroke, grapple

1шт.

1

220714A1

ROD ASSY.

ROD - piston

1шт.

2

T57599

CAP ASSY.

CAP - head, cylinder

1шт.

3

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.

4

B17273

PISTON

- cylinder

1шт.

5

T58030

SPACER

- piston

1шт.

6

T50088

HEAD

- cylinder

1шт.

7

425-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

10

220715A1

ORIFICE

PLATE - oriface

1шт.

11

T55068

PLUG

- nylon

1шт.

12

T51786

SEAL KIT

KIT - seal (includes all items marked 12)

1шт.

Ref #12, Part number T51786, KIT,SEAL,CONTAINS 9, 10 PARTS. SOME MAY NOT BE USED DEPENDING UPON THE APPLICATION.

1шт.
