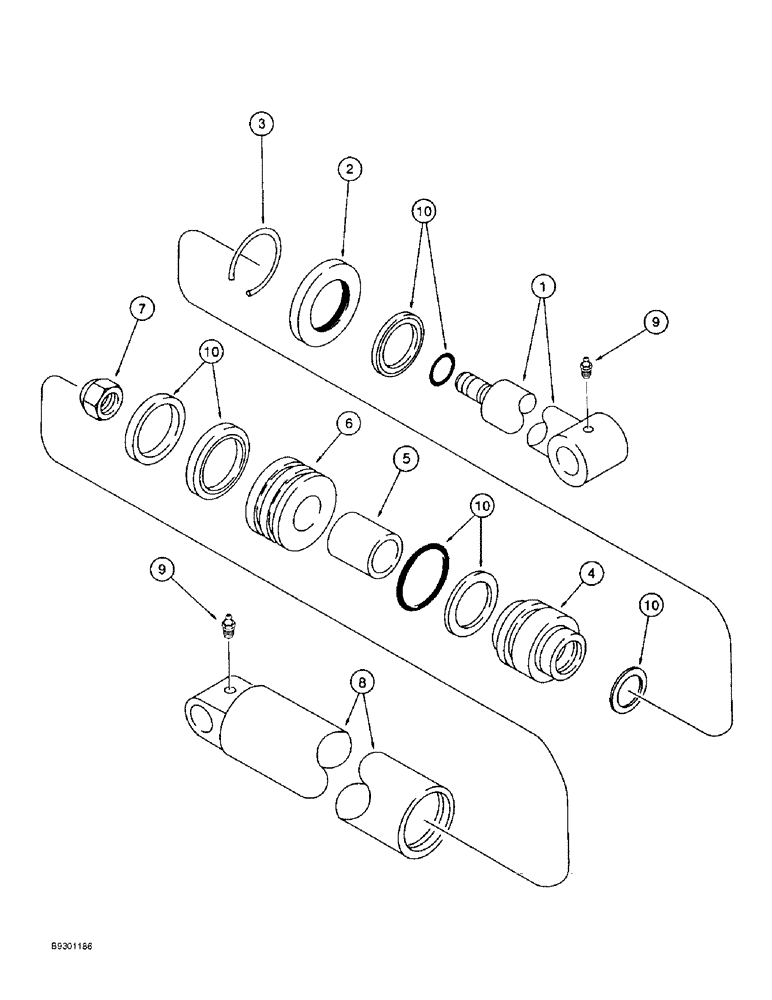

Запчасти Case IH 890 (8-34) - ATTACHMENT CYLINDER (08) - HYDRAULICS

1978769C1

CYLINDER

- attachment, 76 (3) ID x 565 mm (22-1/4 inch): stroke

1шт.

1

1978770C1

ROD ASSY.

ROD - cylinder

1шт.

2

1978771C1

NUT

- retainer

1шт.

3

1978777C1

RING

- retainer

1шт.

4

1978772C1

HEAD

- cylinder

1шт.

5

1978773C1

SPACER

-

1шт.

6

1978774C1

PISTON

- cylinder

1шт.

7

1978775C1

NUT

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - piston

1шт.

9

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16 drive type x 19/32 inch

4шт.

10

1978776C1

SEAL KIT

KIT - seal (Includes all Items marked 10)

1шт.
