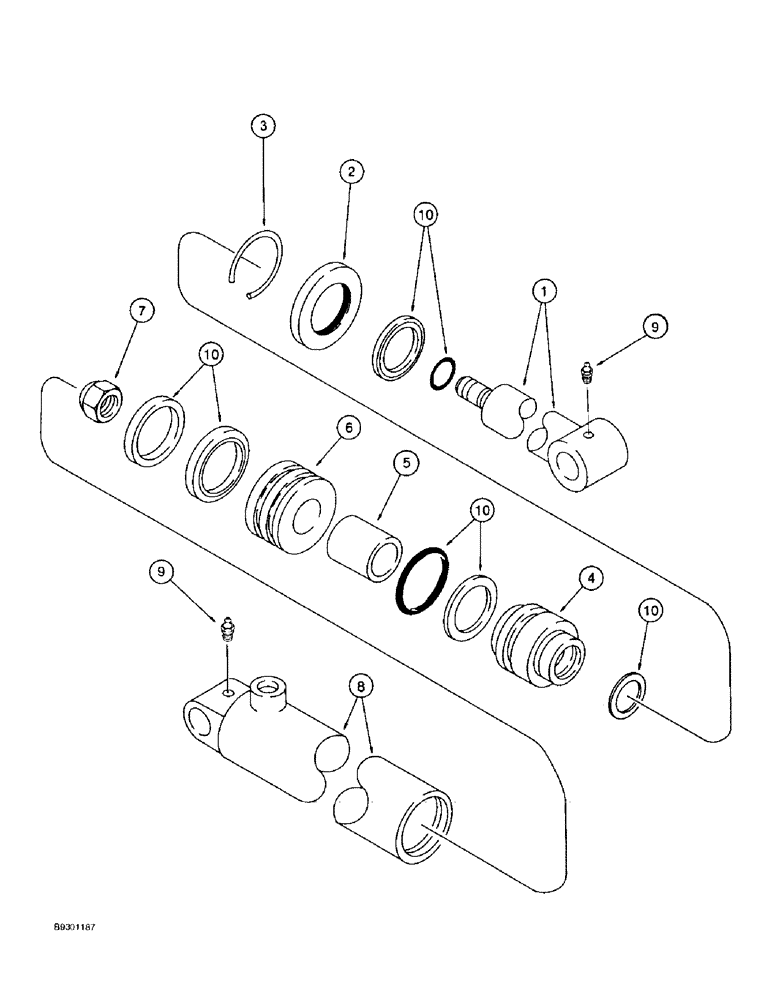

Запчасти Case IH 890 (8-32) - LIFT CYLINDER (08) - HYDRAULICS

1978778C1

CYLINDER

- lift, 83 (3-1/4) ID x 860 mm (33-7/8 inch) stroke

2шт.

1

1978779C1

ROD ASSY.

ROD - cylinder

1шт.

2

1978780C1

NUT

- retainer

1шт.

3

1978786C1

RING

- retainer

1шт.

4

1978781C1

HEAD (CYLINDER)

HEAD - cylinder

1шт.

5

1978782C1

SPACER

-

1шт.

6

1978783C1

PISTON

- cylinder

1шт.

7

1978775C1

NUT

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

9

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16 drive type x 19/32 inch

4шт.

10

1978785C1

SEAL KIT

KIT - seal (Includes all items marked 10)

1шт.
