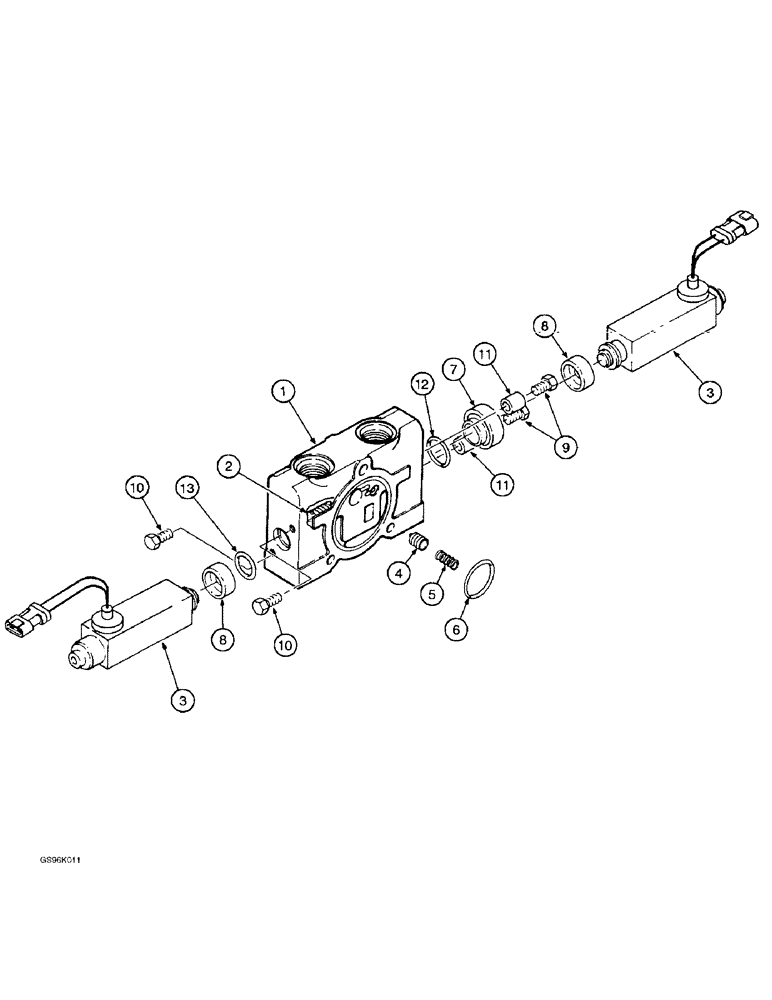

Запчасти Case IH 890 (8-30) - EXTERNAL HYDRAULIC CONTROL VALVE, AUXILIARY SECTION (08) - HYDRAULICS

252784A1

VALVE, CONTROL

VALVE ASSEMBLY - control, three function (Continued)

1шт.

252785A1

VALVE BLOCK

SECTION ASSEMBLY - 3rd function

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - Auxiliary section (order 252785A1 section)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - Auxiliary section (order 252785A1 section)

1шт.

3

253282A1

SOLENOID VALVE

SOLENOID - 12 volt

2шт.

4

1344738C1

PISTON

- compensator

1шт.

5

1344737C1

SPRING

- compression

1шт.

6

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

7

256174A1

SPACER

-

1шт.

8

256175A1

ADAPTER

SPACER - solenoid

1шт.

9

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - hex socket, 1/4 NC x 1-1/4 inch

2шт.

10

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket, 1/4 NC x 1/2 inch

2шт.

11

1346861C1

SPACER

- bolt

2шт.

12

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

13

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

2шт.
