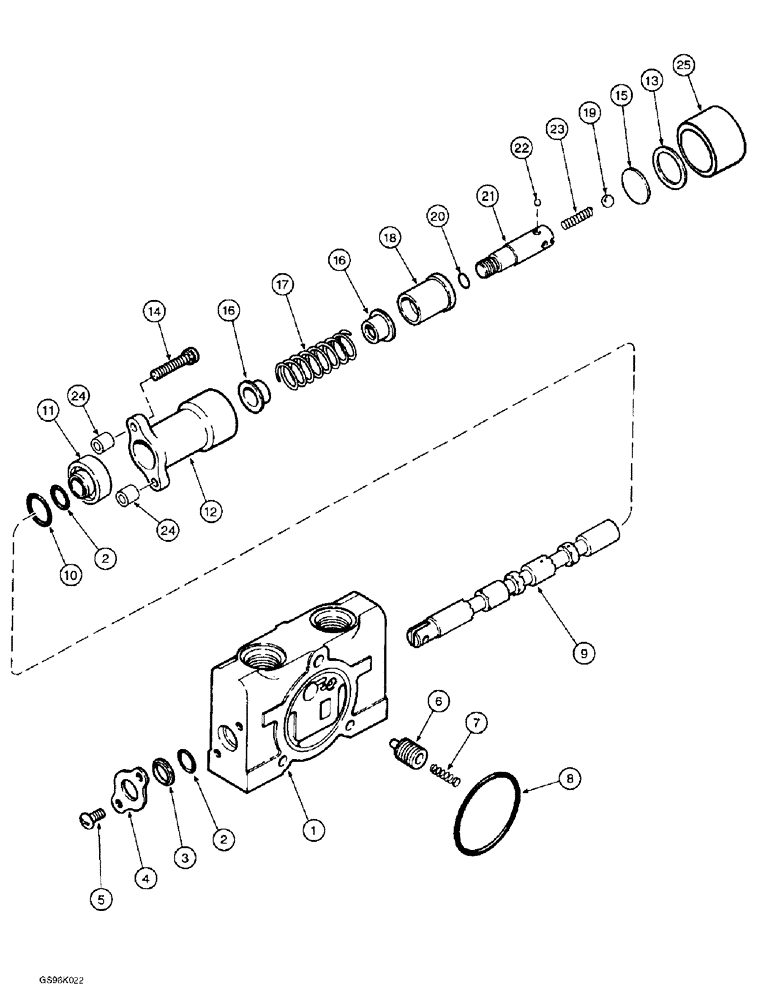

Запчасти Case IH 890 (8-28) - EXTERNAL HYDRAULIC CONTROL VALVE, BUCKET SPOOL SECTION (08) - HYDRAULICS

105080A1

VALVE

ASSEMBLY - control, two spool, hydraulic (Continued)

1шт.

252784A1

VALVE, CONTROL

VALVE ASSEMBLY - control, three function, hydraulic (Continued)

1шт.

105084A1

SPOOL

SECTION ASSEMBLY - spool, bucket, regenerative

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - spool section (order 105084A1 section)

1шт.

2

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

- detent spool

2шт.

3

S111870

OIL SCRAPER RING

SEAL - wiper

2шт.

4

S111865

PLATE

- seal

2шт.

5

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

- machine, pan Phillips, 1/4 NC x 3/8 inch

2шт.

6

1344738C1

PISTON

- compensator

1шт.

7

1344737C1

SPRING

- compression

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - regenerative valve (order 105084A1 section)

1шт.

10

1344732C1

SEAT

- spring

2шт.

11

1344735C1

SPRING

- compression

1шт.

12

105089A1

SPACER

- spring

1шт.

13

1344729C1

END

STOP - spool end

1шт.

14

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

SCREW, Hex Soc Hd, 1/4"-20 x 3/4"

2шт.

15

S111869

CAP

- spool

1шт.

16

105085A1

CLEVIS

- end

1шт.

17

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
